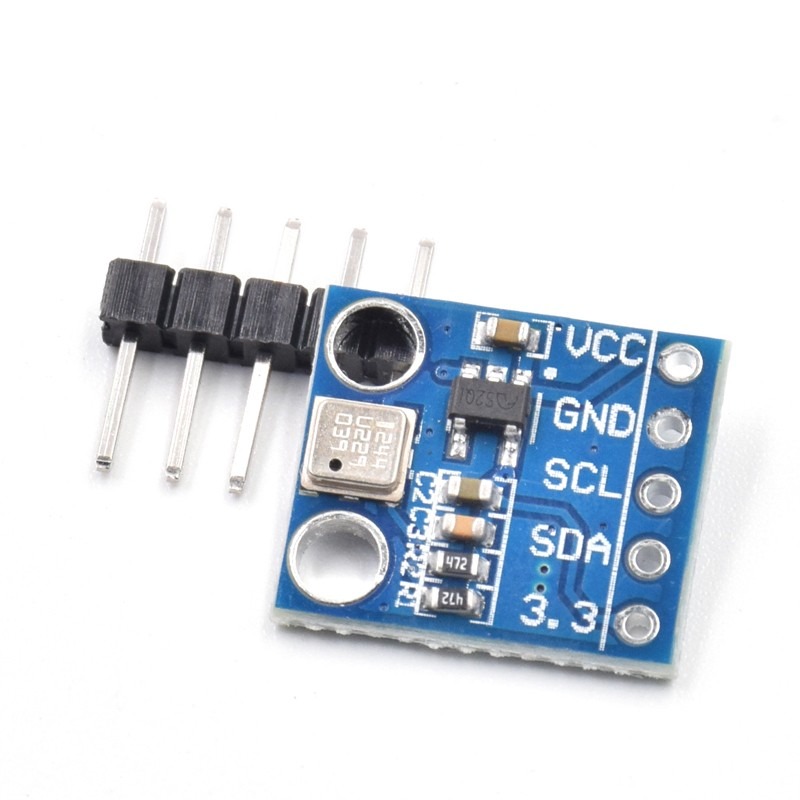

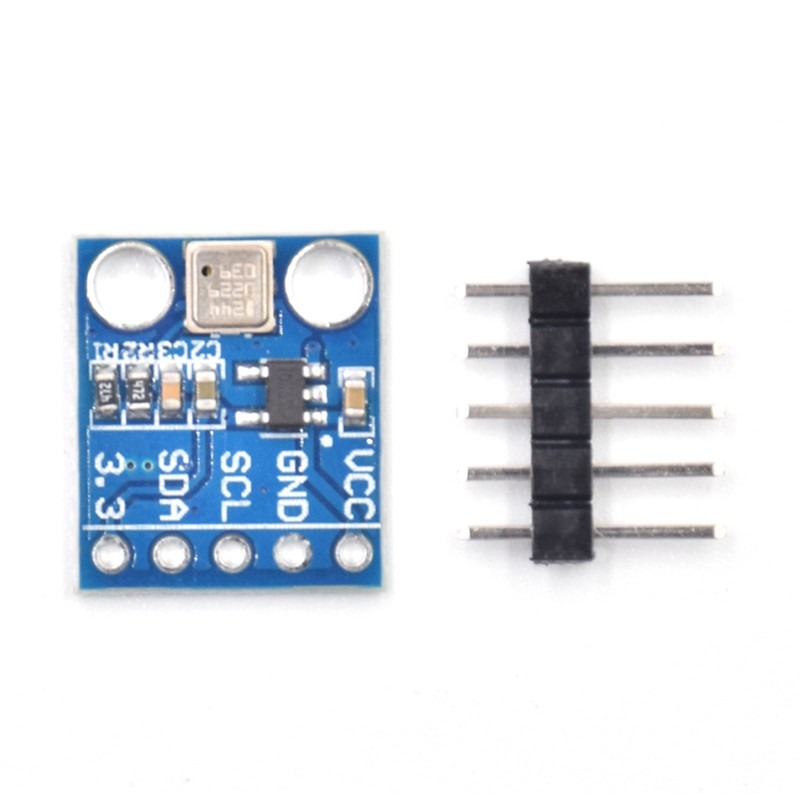

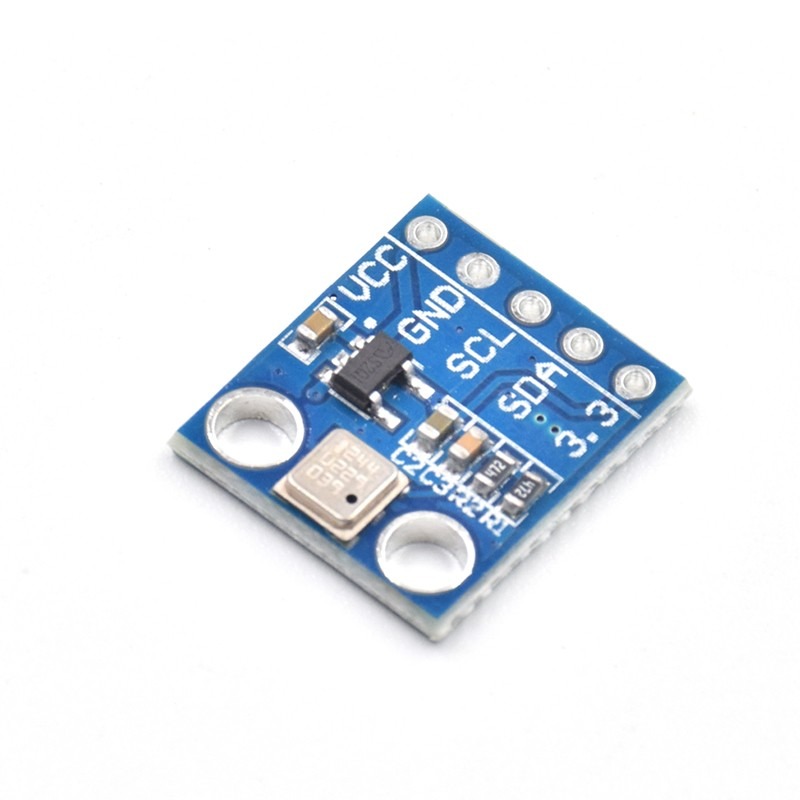

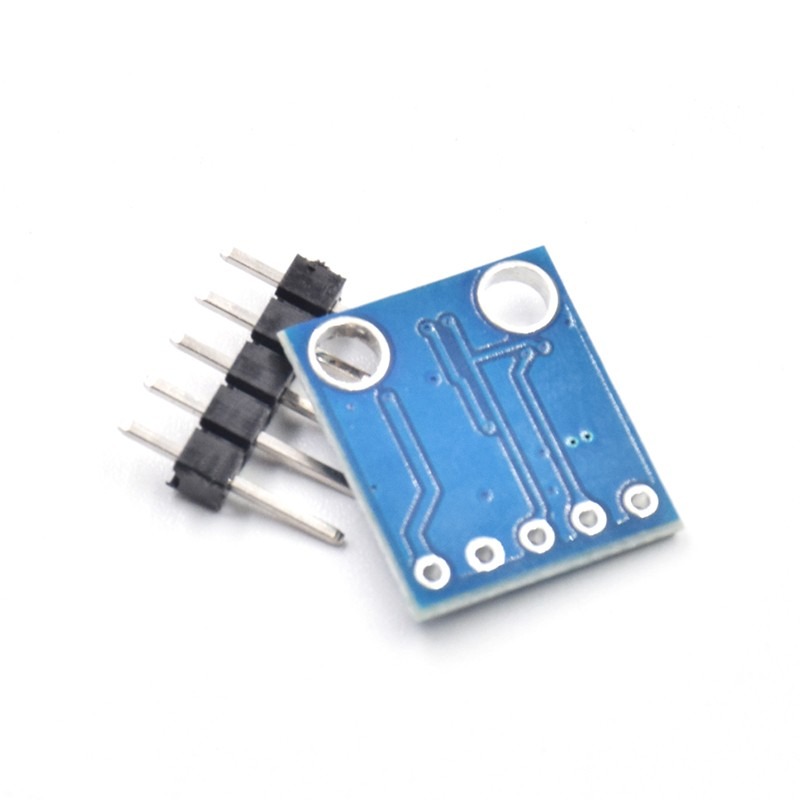

GY-68 BMP180 New BOSCH Temperature Module Pressure Module Pressure Sensor

SKU: FA2013-1 Tag:

$1.60

Weight 0.007 kg

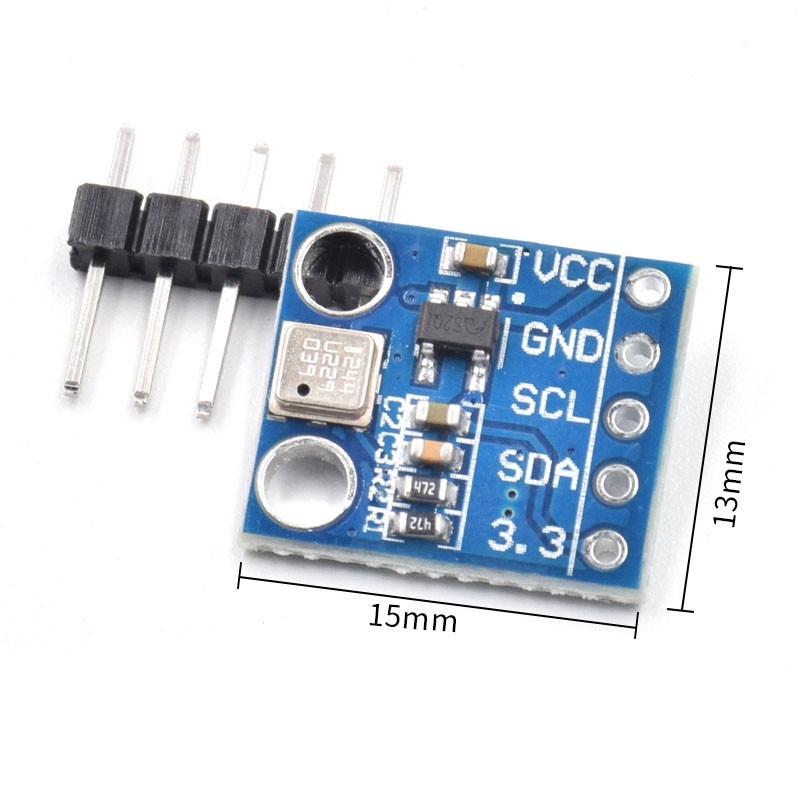

Dimensions 1.5 × 1.3 cm
Pressure range

1.300~1100hPa (9000m~-500m above sea level)

Power supply voltage

2.1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)

LCC8 package

Lead-free ceramic carrier package (LCC)

Low power consumption

5μA, in standard mode

High precision

in low power consumption mode, the resolution is 0.06hPa (0.5m)

Resolution

In high linearity mode, the resolution is 0.03hPa (0.25m)

temperature output

With temperature output

Interface

I2C interface

Temperature compensation

Yes

Feature

Lead-free, RoHS compliant

MSL 1 response time

7.5ms

Standby current

0.1μA

Advantage

No external clock circuit required

200 in stock

Description

VCC is 5V. The output high level 3.3V can be powered by 5v. There is a voltage conversion chip inside, but only one power supply mode can be selected for 5v and 3.3v. If you select 3.3v, you can no longer use 5v. If you select 5v, you can no longer use it. 3.3v.

BMP180 is a pressure sensor with high precision, small size and low energy consumption, which can be used in mobile devices.

Its performance is excellent, the absolute accuracy can reach as low as 0.03hPa, and the electrode consumption is low, only 3μA.

BMP180 uses a powerful 8-pin ceramic leadless chip carrier (LCC) ultra-thin package, which can be directly connected to various microprocessors through the I2C bus.



Main feature

  1. Pressure range: 300~1100hPa (9000m~-500m above sea level)
  2. Power supply voltage: 1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)
  3. LCC8 package: Lead-free ceramic carrier package (LCC)
  4. Size: 1.5mmx1.3×0.93mm
  5. Low power consumption: 5μA, in standard mode
  6. High precision: in low power consumption mode, the resolution is 0.06hPa (0.5m)
  7. In high linearity mode, the resolution is 0.03hPa (0.25m)
  8. With temperature output
  9. I2C interface
  10. Temperature compensation
  11. Lead-free, RoHS compliant
  12. MSL 1 response time: 7.5ms
  13. Standby current: 0.1μA
  14. No external clock circuit required



Typical application

GPS precise navigation (dead reckoning, upper and lower bridge detection, etc.)

Indoor and outdoor navigation

Leisure, sports and medical health monitoring

Weather forecast

Vertical speed indication (rising/sinking speed)

Fan power control

Typical application

GPS precise navigation (dead reckoning, upper and lower bridge detection, etc.)

Indoor and outdoor navigation

Leisure, sports and medical health monitoring

Weather forecast

Vertical speed indication (rising/sinking speed)

Fan power control
