MAX7219 8×8 Dot Matrix LED Display Module – DIY Microcontroller Kit for Arduino & Raspberry Pi

Description

Description

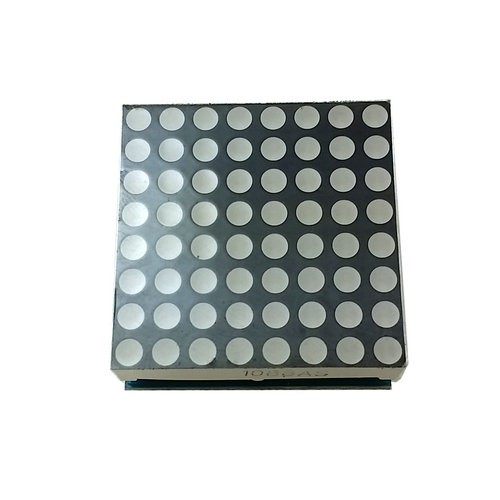

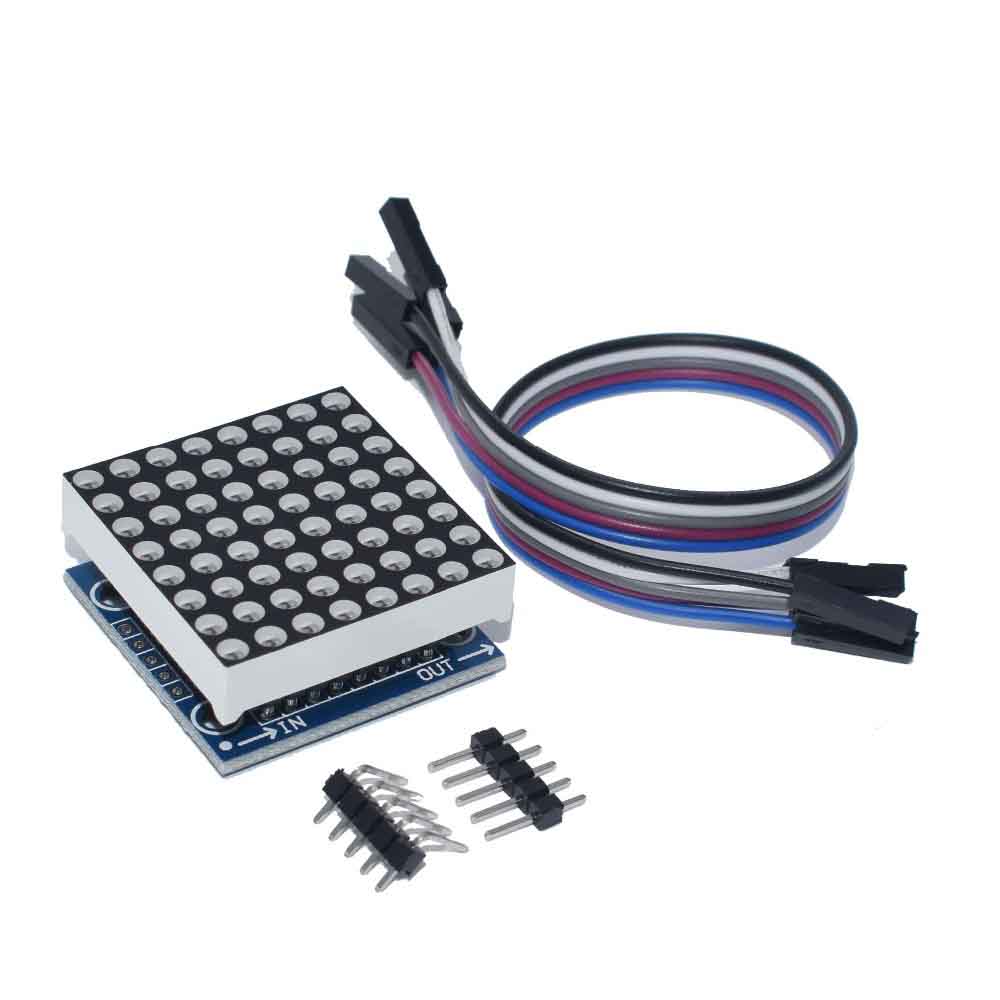

The MAX7219 8×8 Dot Matrix LED Display Module is a compact, versatile, and powerful display unit designed for microcontroller-based projects, electronic signage, and visual information systems. This single 8×8 red LED dot matrix panel contains 64 individually addressable LEDs, allowing you to display custom characters, scrolling text, animations, and even simple graphics with ease.

At the heart of this module is the MAX7219 integrated circuit driver, a specialized serial input/output common-cathode display driver that dramatically simplifies the process of controlling LED matrices. The MAX7219 handles all the complex multiplexing and refresh timing internally, eliminating the need for constant microcontroller intervention and ensuring flicker-free display performance. The driver includes an 8×8 static RAM for storing display data, a BCD decoder, a multiplex scan circuit, and segment drivers—all integrated into a single chip.

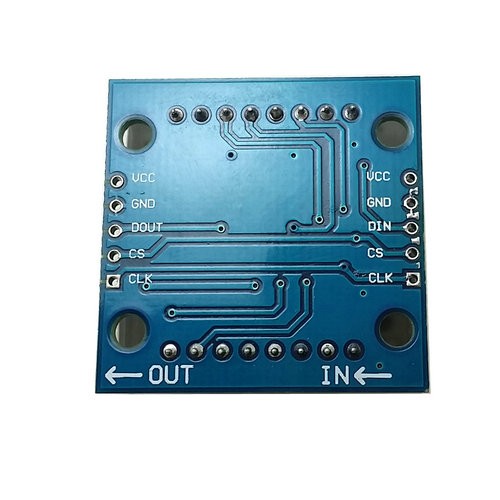

The module communicates via a simple 3-wire or 4-wire SPI interface (VCC, GND, DIN, CS, CLK), requiring only three I/O pins from your microcontroller to control all 64 LEDs. This efficient communication protocol allows the module to be easily integrated with popular development platforms including Arduino, Raspberry Pi, ESP8266, ESP32, STM32, and other SPI-compatible microcontrollers. The module also features input and output headers on opposite sides, allowing multiple units to be cascaded in a daisy-chain configuration to create larger displays (e.g., 8×32, 8×64, or larger).

Key design benefits include:

• Flicker-free operation – The MAX7219 automatically refreshes the display at high frequency

• Software-controlled brightness – 16 discrete brightness levels from 0 to 15

• Low microcontroller overhead – SPI communication minimizes CPU usage

• Cascading capability – Connect multiple modules to build larger displays

• Low power consumption – Shutdown mode consumes only 150µA

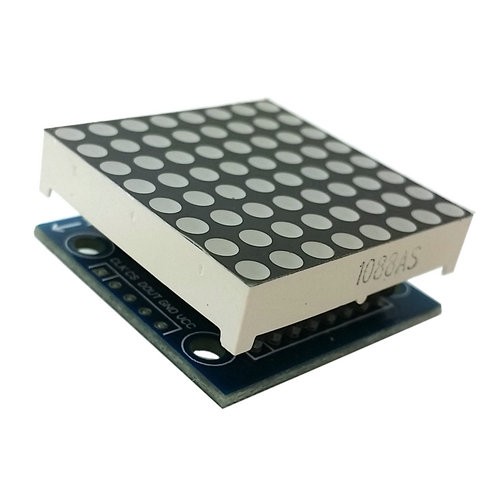

The module is constructed on a durable PCB with four 3mm mounting holes at each corner, making it easy to secure to enclosures, panels, or custom mounting brackets. The red LEDs provide excellent visibility with high contrast, making this module suitable for both indoor and covered outdoor applications.

Whether you need to build a scrolling message board, a real-time data display for IoT projects, a scoreboard for sports events, a status indicator for industrial equipment, or simply want to add dynamic visual output to your next electronics project, the MAX7219 8×8 Dot Matrix Display Module delivers reliable, bright, and easy-to-control LED display capability at an affordable price.

Key Features

• 64 Individual LEDs – 8×8 dot matrix with each LED independently controllable for custom patterns and characters

• MAX7219 Driver Chip – Handles all multiplexing and refresh timing automatically for flicker-free display

• Simple SPI Interface – Only 3 I/O pins required to control all 64 LEDs (DIN, CS, CLK)

• Software Brightness Control – 16 adjustable brightness levels via register setting (0x0 to 0xF)

• Cascadable Design – Input and output headers allow multiple modules to be daisy-chained for larger displays

• 5V Operating Voltage – Compatible with 5V microcontrollers; 3.3V logic devices may require level shifting

• Low Power Shutdown Mode – Consumes only 150µA in power-down mode

• Compact Dimensions – 32 x 32 x 1.5 mm (PCB) with 3mm mounting holes at each corner

• Individual LED Control – Each of the 64 LEDs can be addressed independently

• Library Support – Extensive community libraries available (LedControl, MD_Parola, MD_MAX72XX, max7219 for Python)

Technical Parameters
