MP3 Music VS1053B shield board with TF card slot work with Arduino UNO MEGA

$6.06

Weight 0.045 kg
Dimensions 6.0 × 5.6 cm
Feature 1

Can play a variety of music formats, support for OGG encoding real-time recording

Feature 2

SPI interface, the control signal lines are led out

Feature 3

A headphone and stereo output

Feature 4

A microphone for recording

Feature 5

A line_in input interface

Feature 6

Power indicator

Feature 7

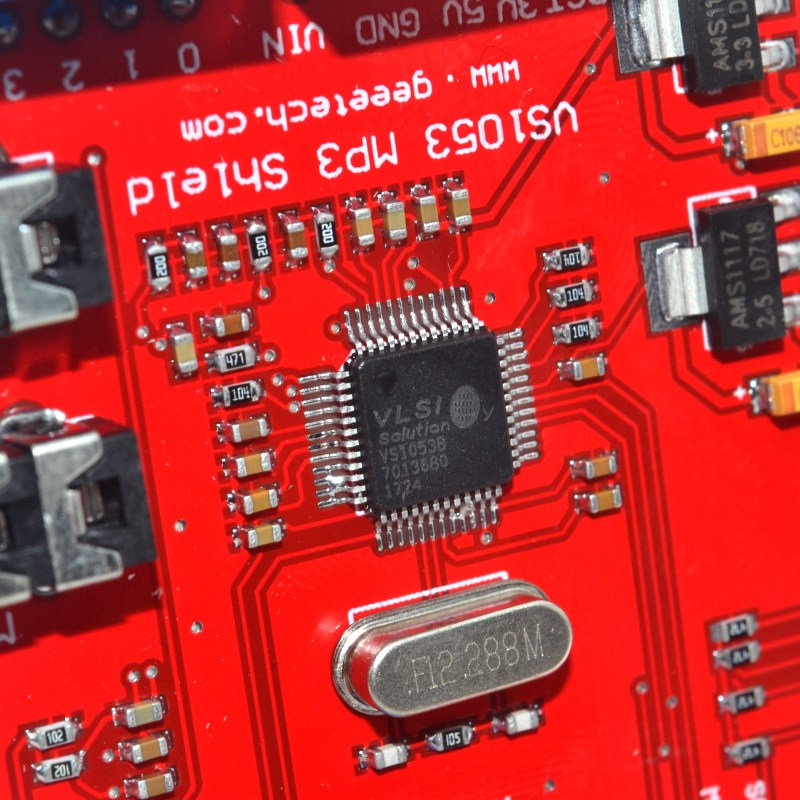

3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current

Feature 8

A single power supply: +5 VDC

Feature 9

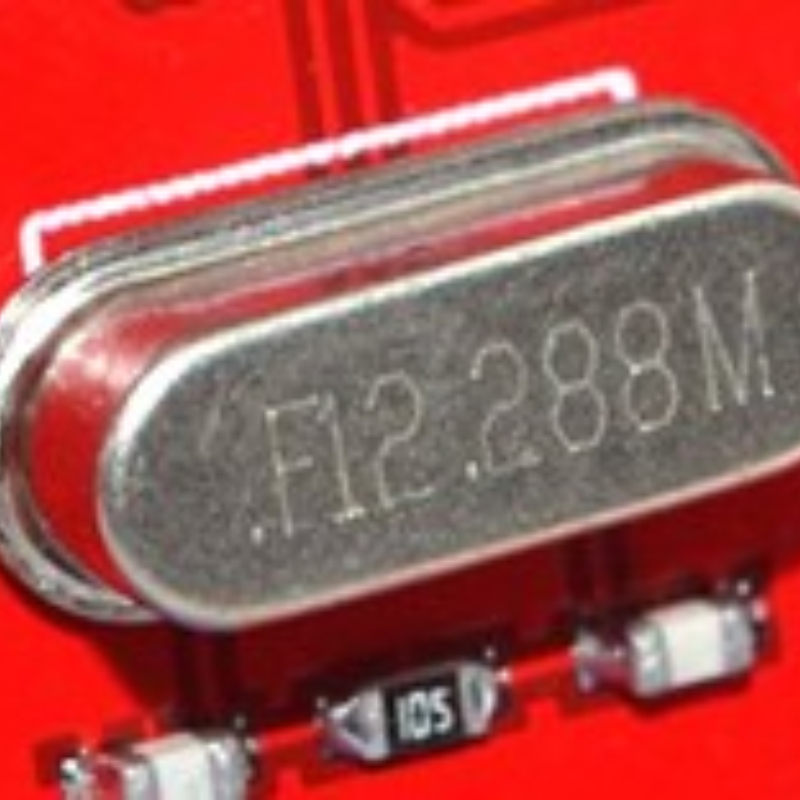

12.288 Mhz crystal

Feature 10

TF card slot

200 in stock

Description

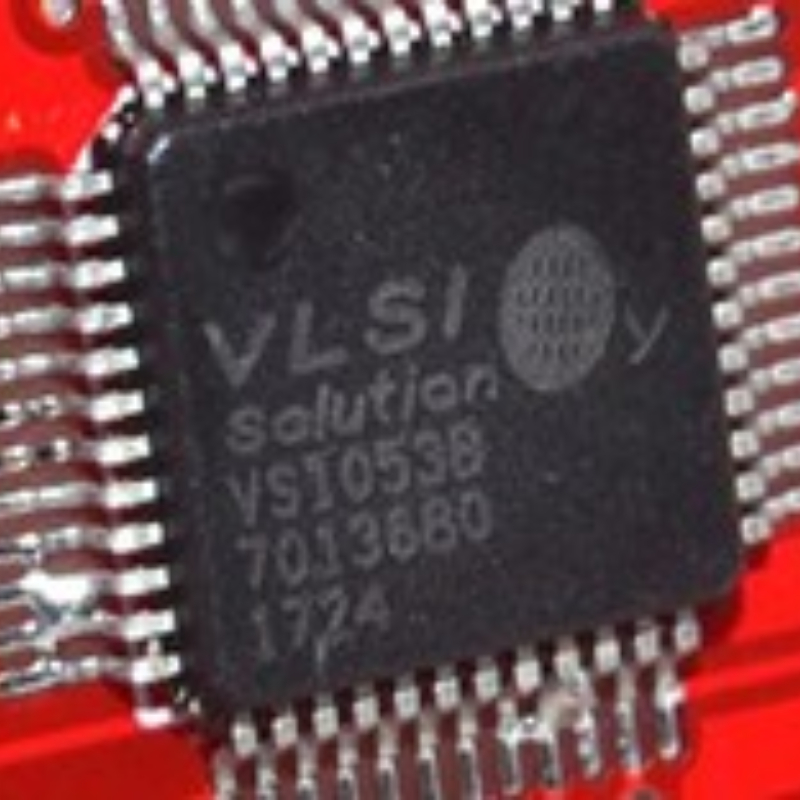

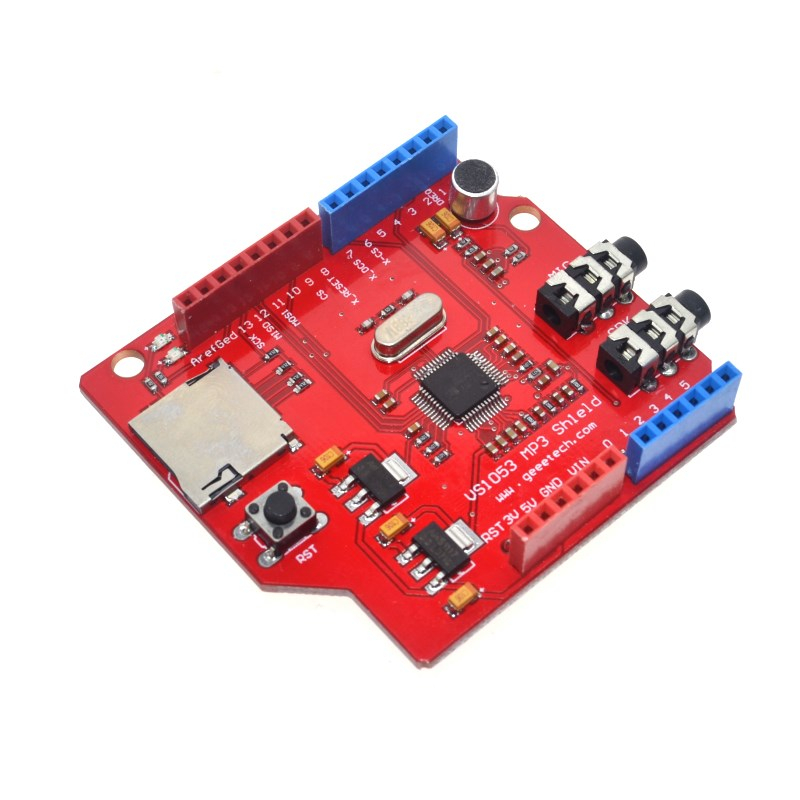

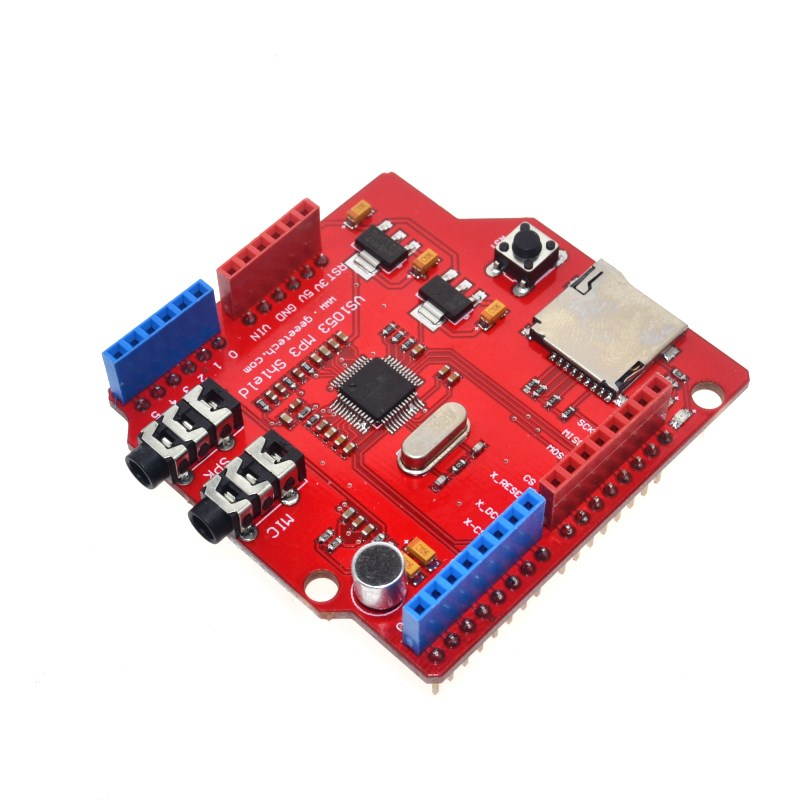

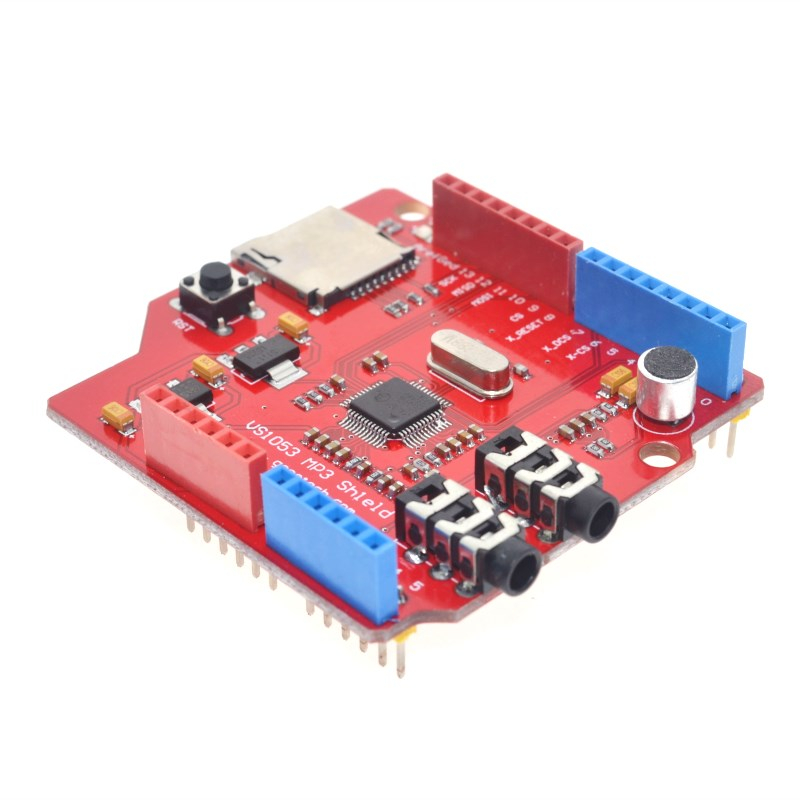

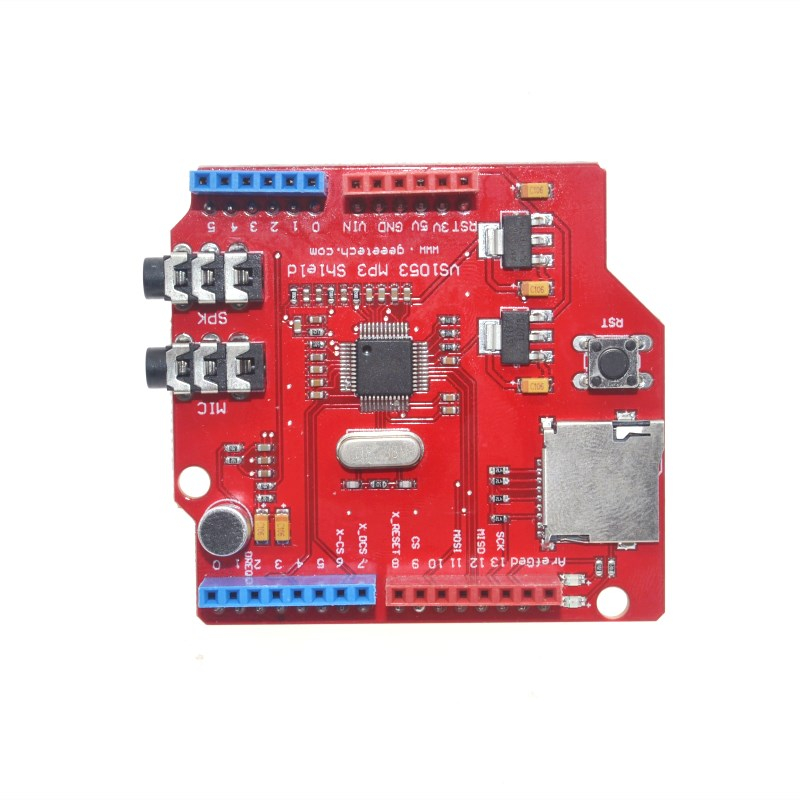

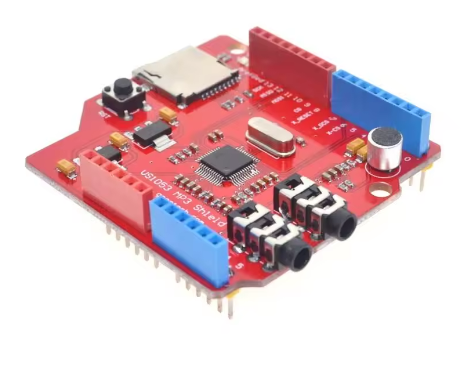

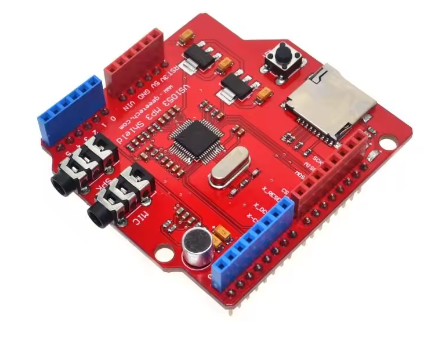

This MP3 shield board is designed based on VS1053B from VLSI. using this shiled you can plug in your arduino UNO/MEGA direcly as showing in pic, dont’ need need to hook up with jumpers,
it’s becomes more easy to play music compared with the tiny mp3 breakout board. VS1053 is a versatile MP3 codec processor that is capable of decoding a variety of music formats, including Ogg Vorbis/MP3/AAC/WMA/MIDI audio. For the best headphone listening experience, the VS1053 includes EarSpeaker spatial processing which accurately simulates how a room with stereo loudspeakers would sound. In addition to being able to decode all major formats, VS1053 is capable of recording in Ogg Vobis file.



Application

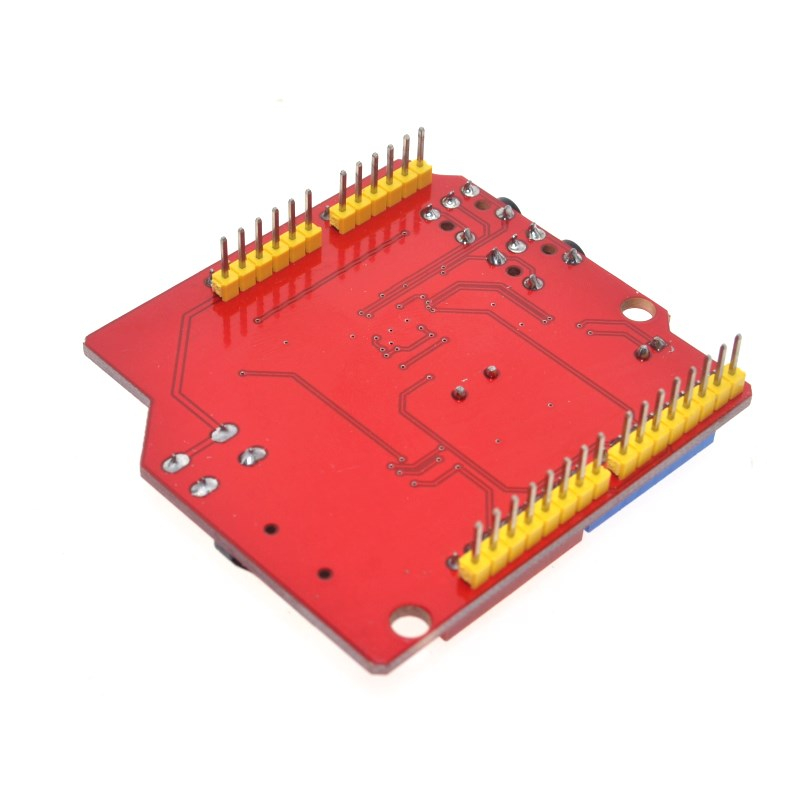

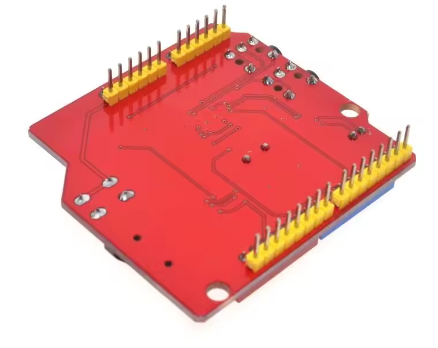

With the TF card slot on the other side of the board,
you can play mp3 files from TF card using this breakout.
It is easily to drop it in your project or make a mp3 player using your Arduino or other microcontroller.



Features

1. Can play a variety of music formats, support for OGG encoding real-time recording
2. SPI interface, the control signal lines are led out
3. A headphone and stereo output
4. A microphone for recording
5. A line_in input interface
6. Power indicator
7. 3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current
8. A single power supply: +5 VDC
9. 12.288 Mhz crystal
10. TF card slot

Decodes formats

Ogg Vorbis
MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
FLAC lossless audio with software plugin (upto 24 bits, 48 kHz)
WAV (PCM + IMA ADPCM)
General MIDI 1 / SP-MIDI format 0

Package included
  •  1 x  MP3 Music VS1053B shield board with TF card slot work with Arduino UNO MEGA

Application

With the TF card slot on the other side of the board,
you can play mp3 files from TF card using this breakout.
It is easily to drop it in your project or make a mp3 player using your Arduino or other microcontroller.
