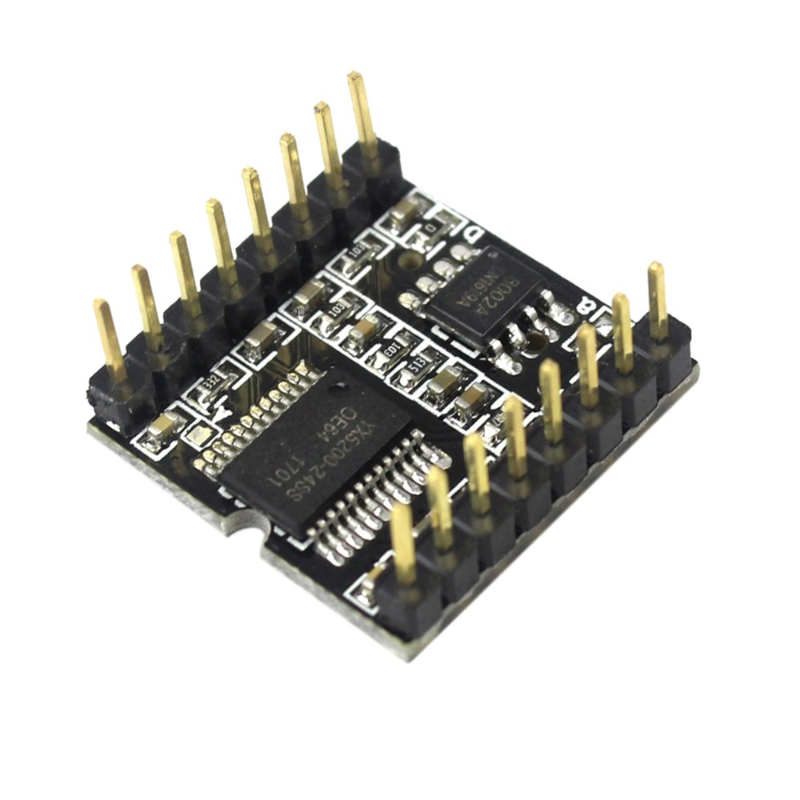

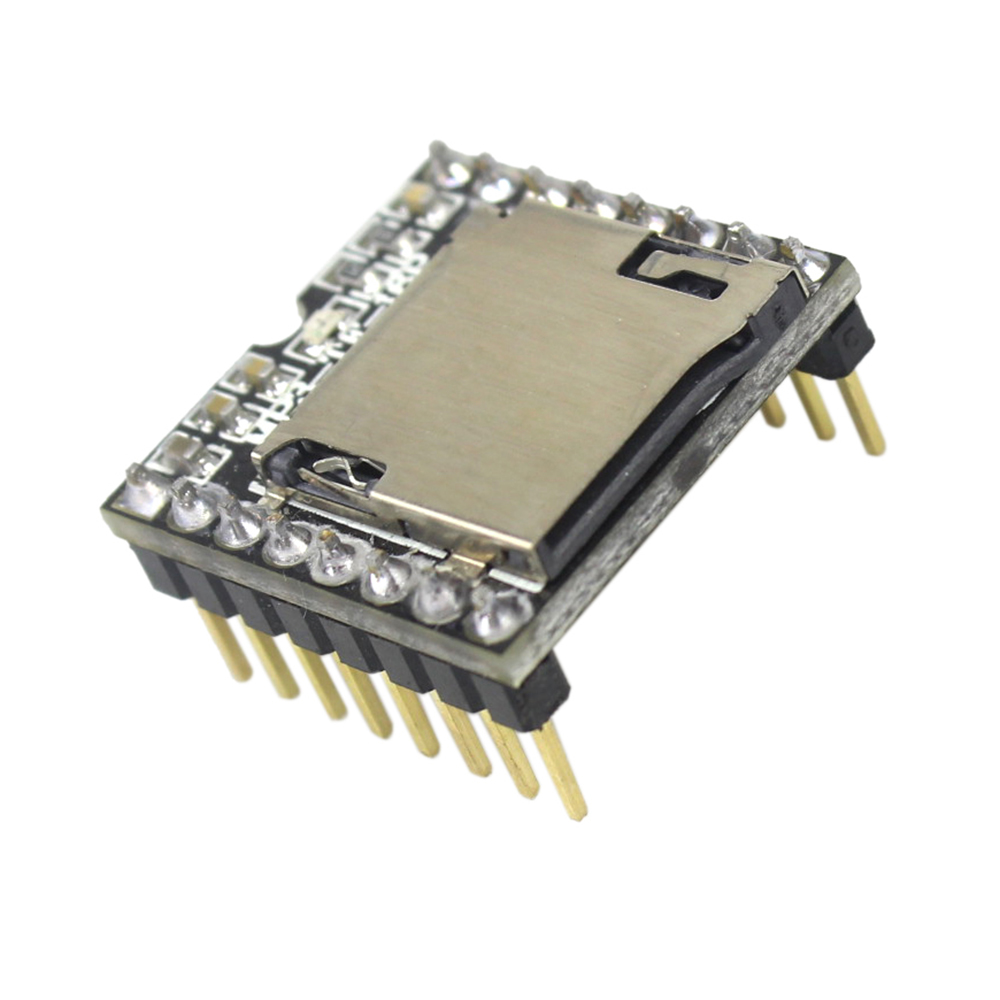

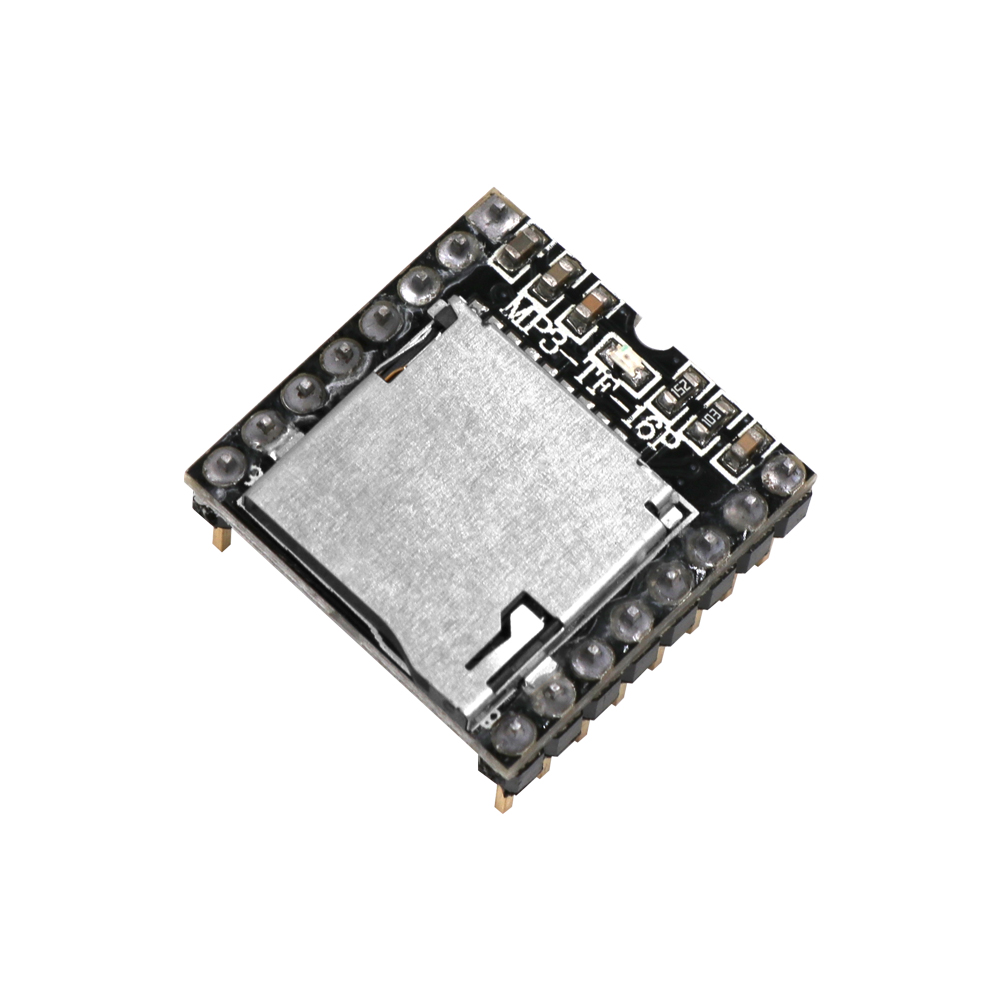

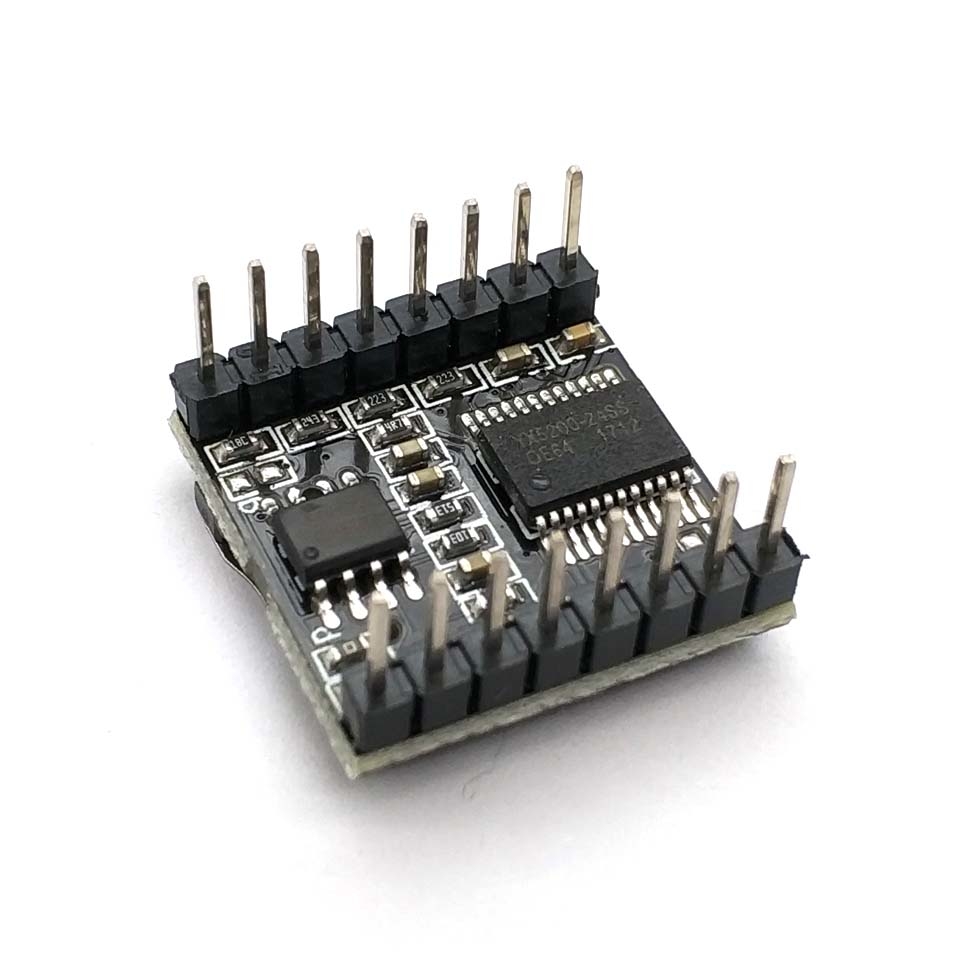

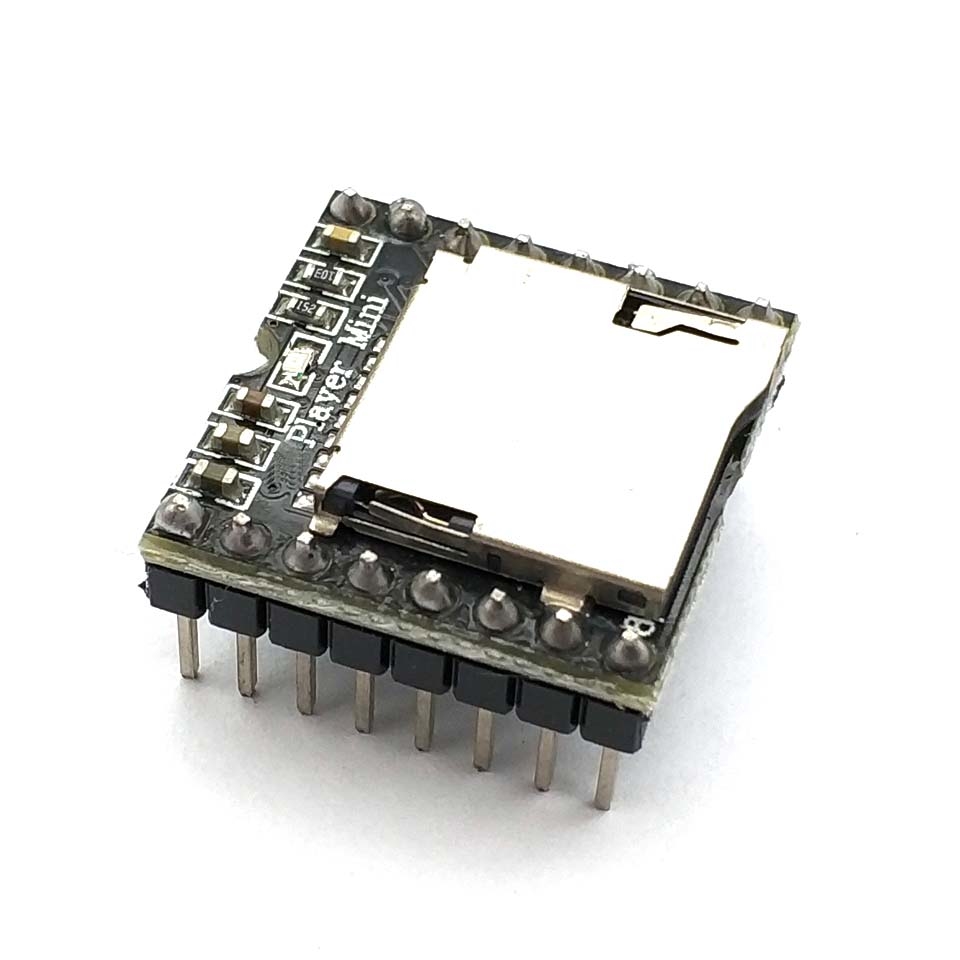

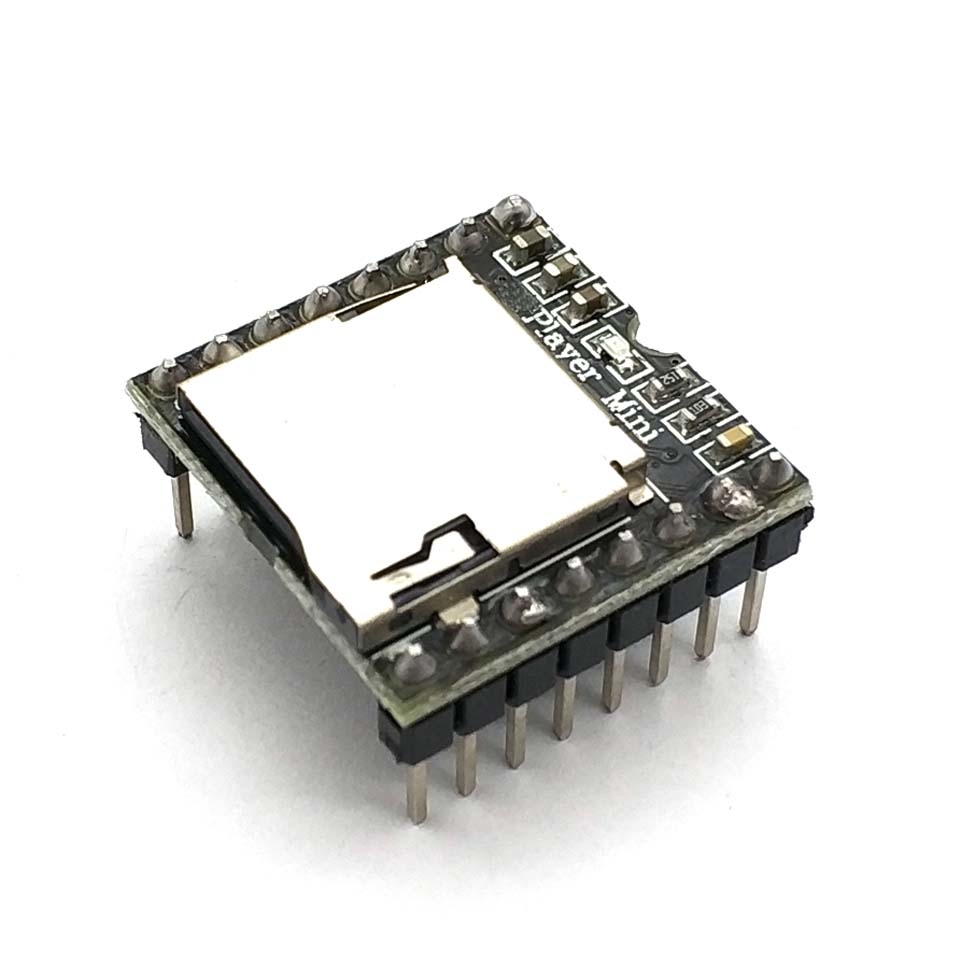

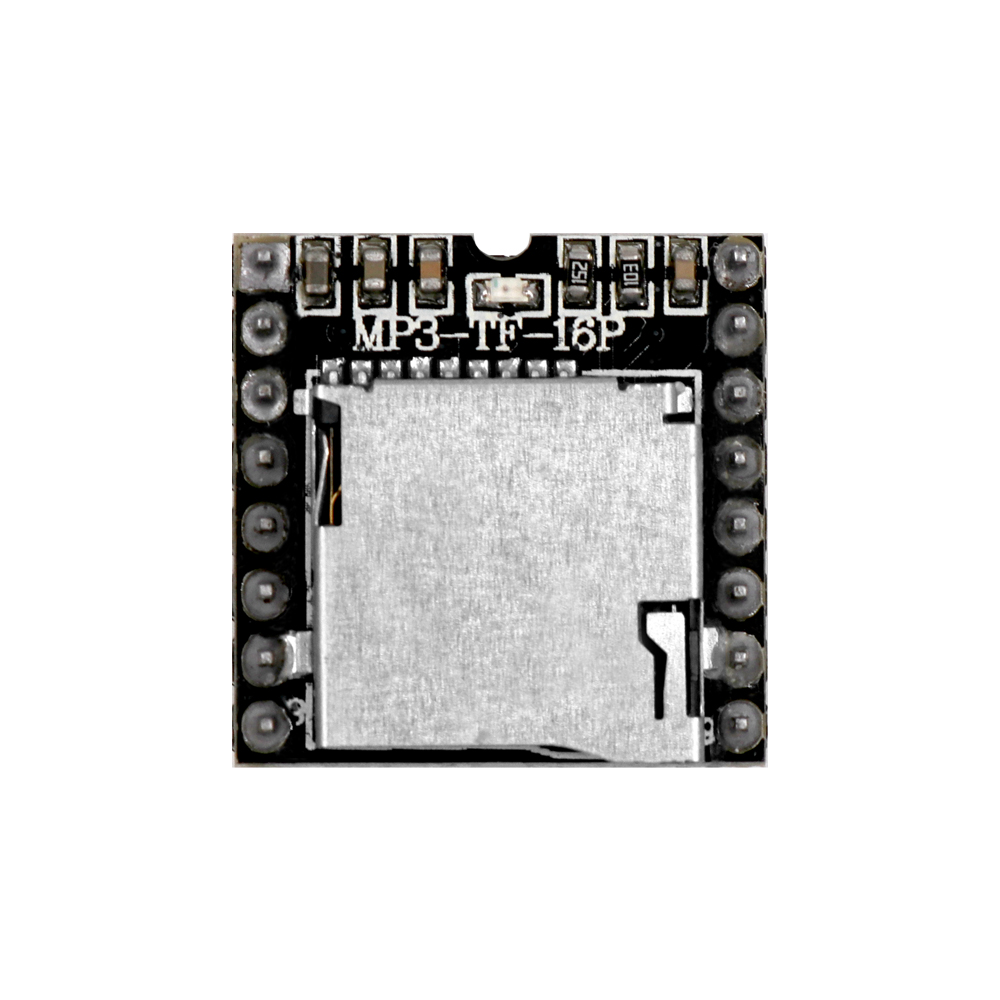

MP3-TF-16P MP3 Disk TF Card Module Serial Port

$0.86

Weight 0.010 kg
Dimensions 2.1 × 2.1 × 1 cm
Input Supply voltage (V)

3.2V ~ 5 V

DAC output

24-bit

SNR

85 dB

Supports sampling rates

8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48KHz

Operating Temperature (°C)

-40 ~ +70

Humidity Range

5% ~ 95%

300 in stock

Description

The MP3-TF-16P Player For Arduino is a small and low price MP3 module with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.

Specification

  • Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
  • 24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
  • Fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
  • A variety of control modes, I/O control mode, serial mode, AD button control mode
  • Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
  • Audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs
  • 30 level adjustable volume, 6 -level EQ adjustable

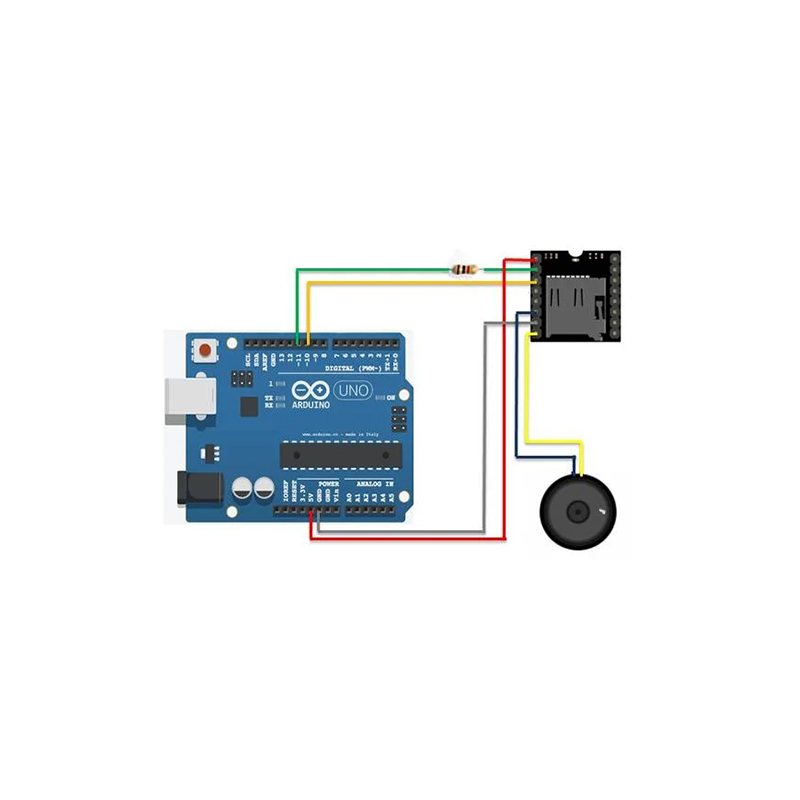

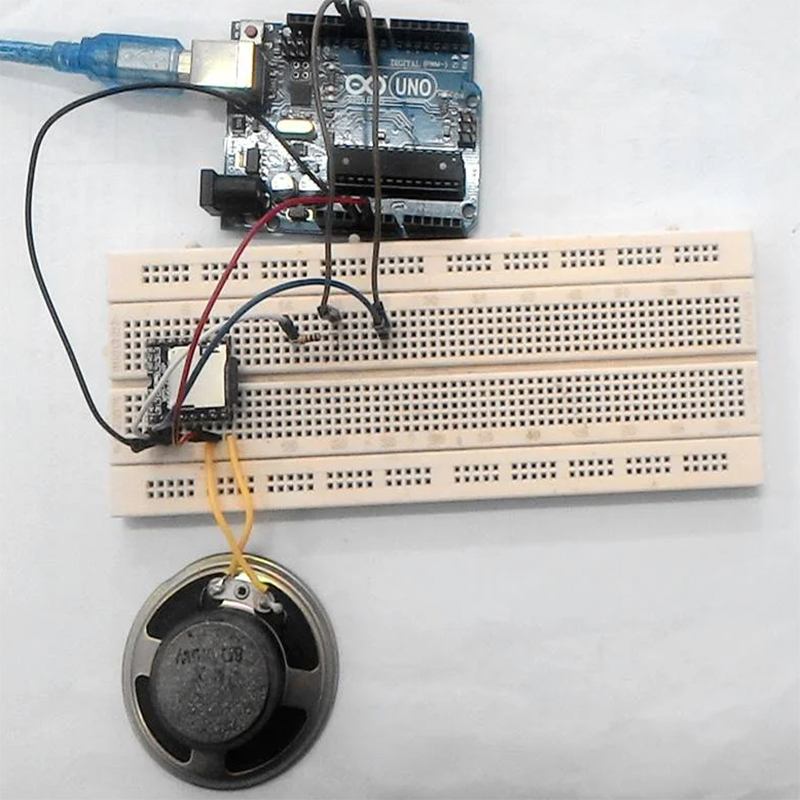

Wiring Diagram

MP3-TF-16P MP3 SD Card Module with Serial Port

The MP3-TF-16P Player For Arduino is a small and low price MP3 module with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.

Application

1. car navigation voice broadcast
2. road transport inspectors, toll voice prompts
3. train station, bus station voice prompts security check
4. electric power, telecommunications, financial operating room voice prompts
5. the vehicle into or out of the channel to verify the voice prompts
6. border control channel voice prompts **
7. multi-channel voice alarm or voice guidance equipment operation
8. electric sightseeing bus safety with voice notices
9. electrical and mechanical equipment failure alarm
10. fire alarm voice prompts
11. automatic broadcasting equipment, regular broadcast
