Raspberry Pi Zero WH (built-in WiFi, pre-soldered headers) Development Kit Type A, Basic Components

SKU: FR1002-11 Tag:
Weight 0.050 kg
Dimensions 6.5 × 0.3 × 0.5 cm
Feature 1

Broadcom BCM2835:1GHz ARM11 single-core processor

Feature 2


Feature 3

Added wireless connectivity:
-802.11 b/g/n wireless LAN
-Bluetooth 4.1
-Bluetooth Low Energy (BLE)

Feature 4

40PIN pre-soldered GPIO headers

Feature 5

Micro SD card slot

Feature 6

Mini-HDMI port (1080p60 video output)

Feature 7

Micro-USB power

Feature 8

Micro-USB OTG port

Feature 9

CSI camera connector

Feature 10

Composite video header

Feature 11

Composite reset header

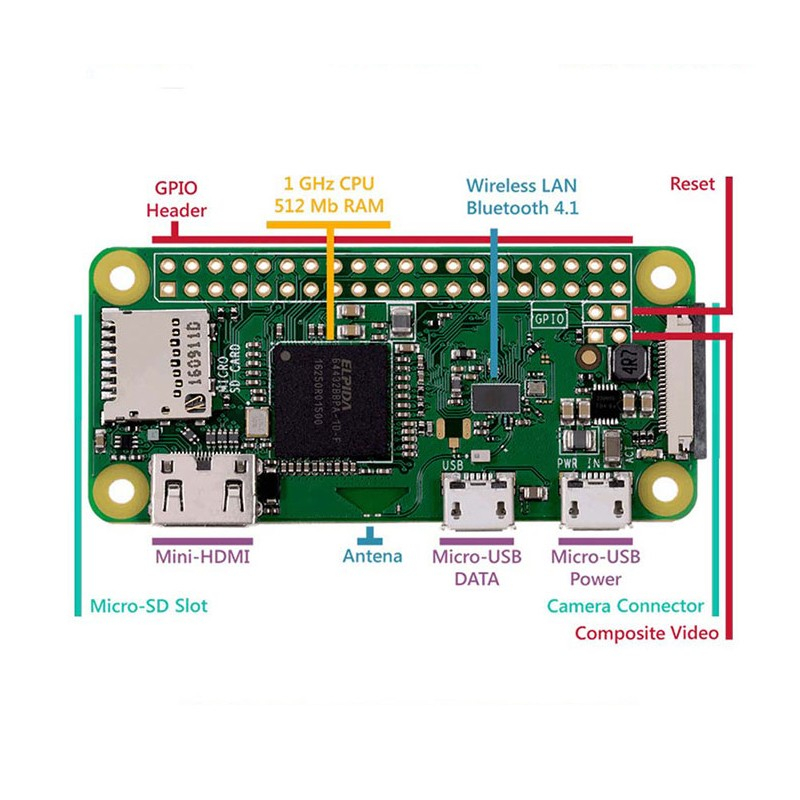

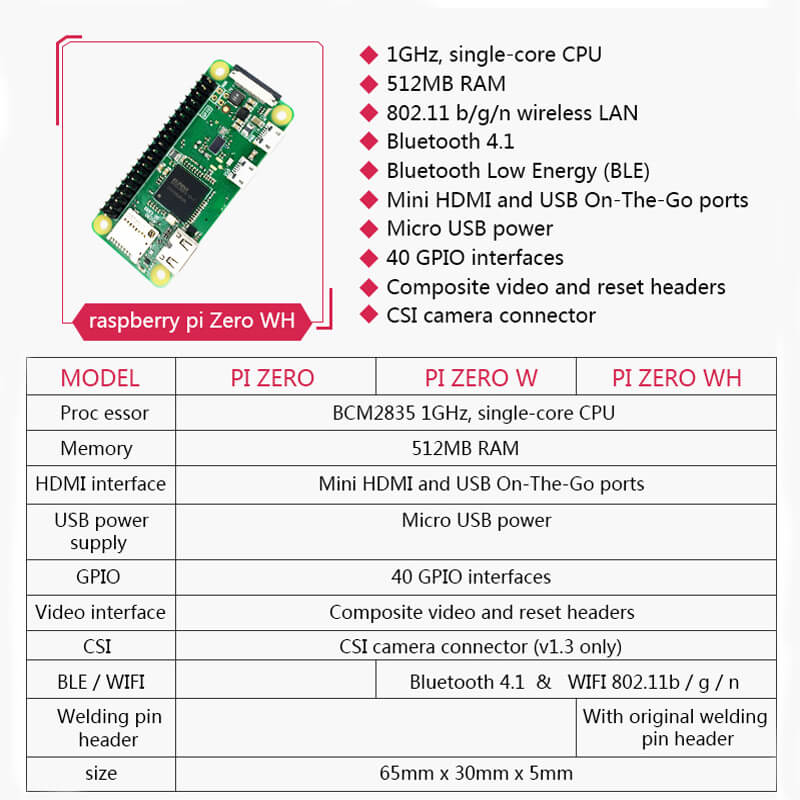

Raspberry Pi Zero WH Features

  • Broadcom BCM2835
    • 1GHz ARM11 single-core processor
  • 512MB RAM
  • Added wireless connectivity
    • 802.11 b/g/n wireless LAN
    • Bluetooth 4.1
    • Bluetooth Low Energy (BLE)
  • 40PIN pre-soldered GPIO headers
  • Micro SD card slot
  • Mini-HDMI port (1080p60 video output)

  • Micro-USB power
  • Micro-USB OTG port
  • CSI camera connector
  • Composite video header
  • Composite reset header

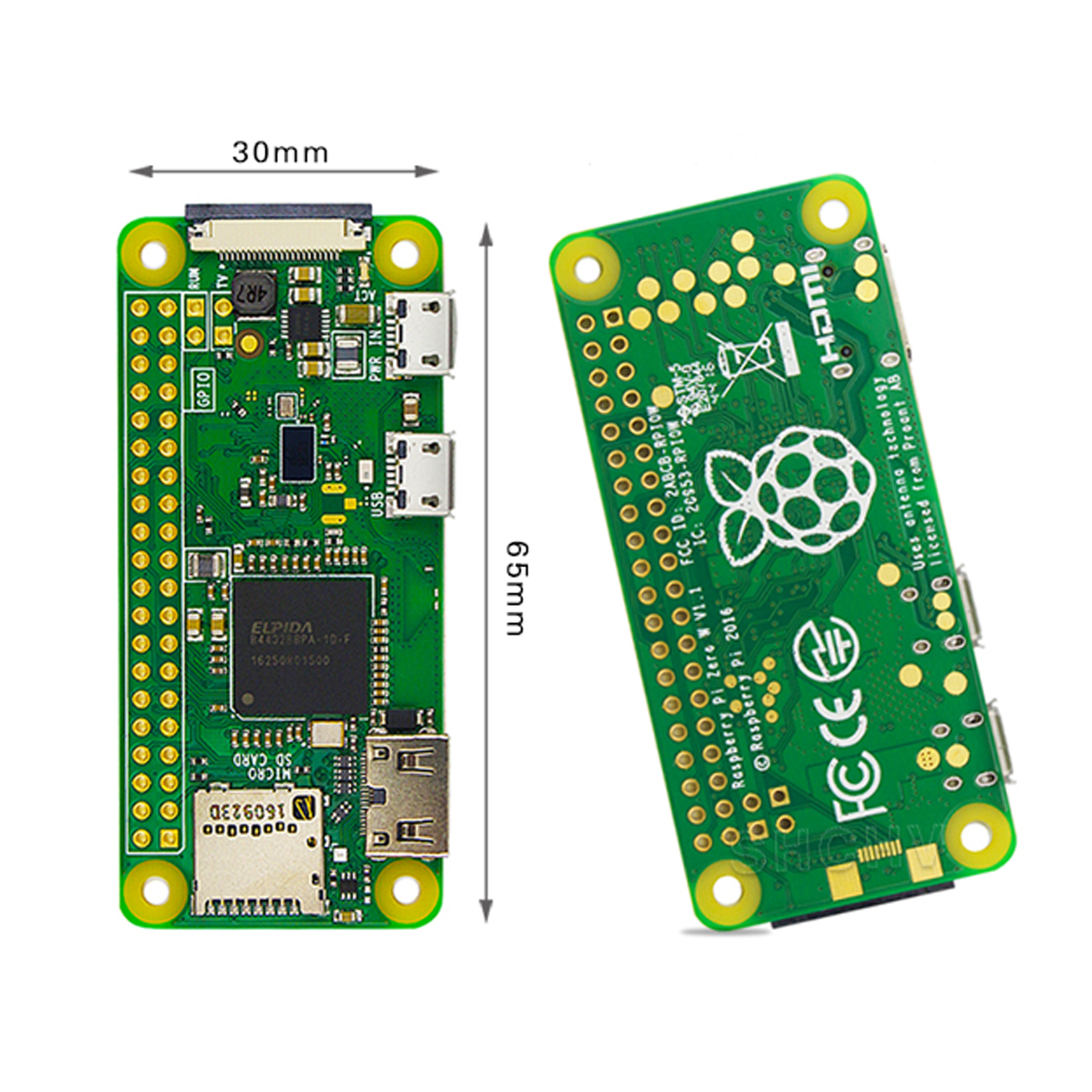

  • Dimension: 65mm x 30mm x 11.6m

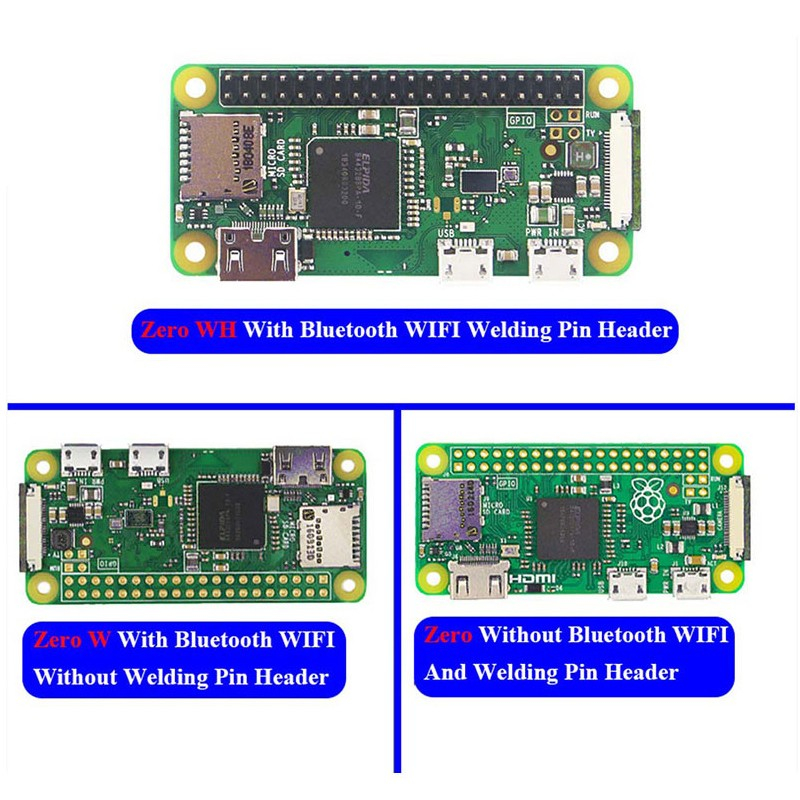

If you didn’t think that the Raspberry Pi Zero W could possibly get any better, then boy do we have a pleasant surprise for you! The new Raspberry Pi Zero WHoffers all the benefits of the Pi Zero W, but with one big difference – a pre-soldered GPIO header!

This upgrade is the addition of a BCM43143 WiFi chip BUILT-IN to your Raspberry Pi Zero – just like the Pi 3! No more pesky WiFi adapters – this Pi is WiFi ready. There’s also Bluetooth Low Energy (BLE) on board making the Pi an excellent IoT solution (BLE support is still in the works, software-wise).
