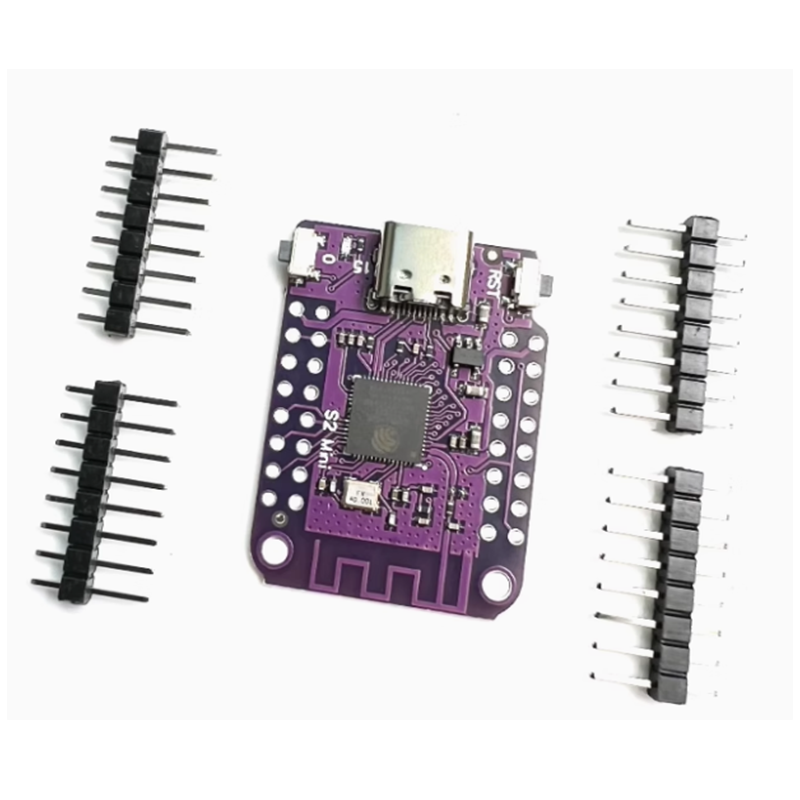

S2 Mini V1.0.0 ESP32-S2 with PSRAM D1 MINI V3.0.0 WIFI development board

SKU: FA1012-6 Tags: , ,

This Wemos S2 Mini is a new version of the well-known Wemos D1 Mini. The S2 Mini is based on an ESP32-S2 chip, and has about 2x as many GPIO pins as the D1 Mini. The compact design of this module makes it an ideal development board to keep your project small. Because this module has the same form factor as the D1 Mini, most shields can also be used with this module. The Wemos S2 Mini is easy to program in Arduino, MicroPython or ESP-IDF.

A mini wifi boards based ESP32-S2FN4R2.

Features

  • based ESP32-S2FN4R2 WIFI IC
  • Type-C USB
  • 4MB Flash
  • 2MB PSRAM

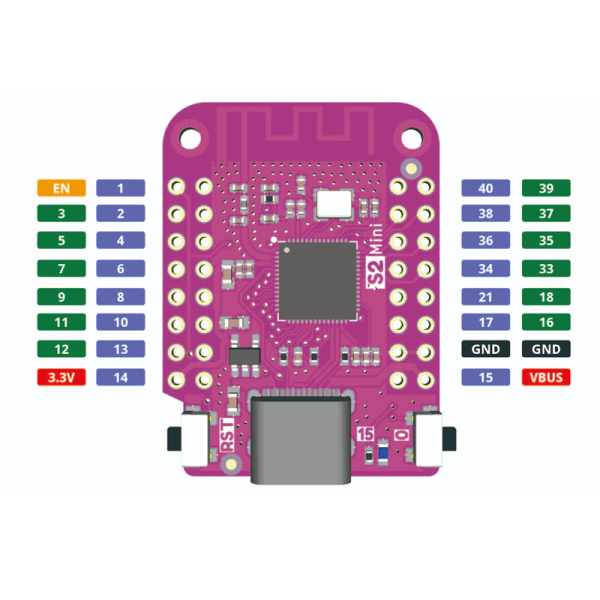

  • 27x IO
  • ADC, DAC, I2C, SPI, UART, USB OTG
  • Compatible with LOLIN D1 mini shields
  • Compatible with MicroPython, Arduino, CircuitPython and ESP-IDF
  • Default firmware: MicroPython

Tutorials

Documentation

Technical specs

Operating Voltage 3.3V
Digital I/O Pins 27
Clock Speed 240MHz
Flash 4M Bytes
PSRAM 2M Bytes

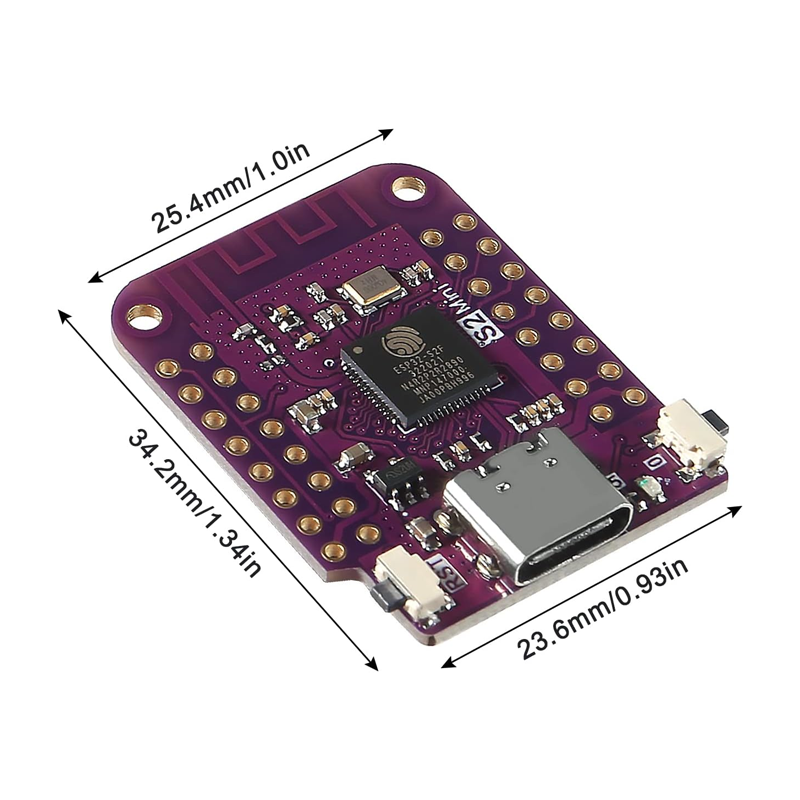

Size 34.3*25.4mm
Weight 2.4g
