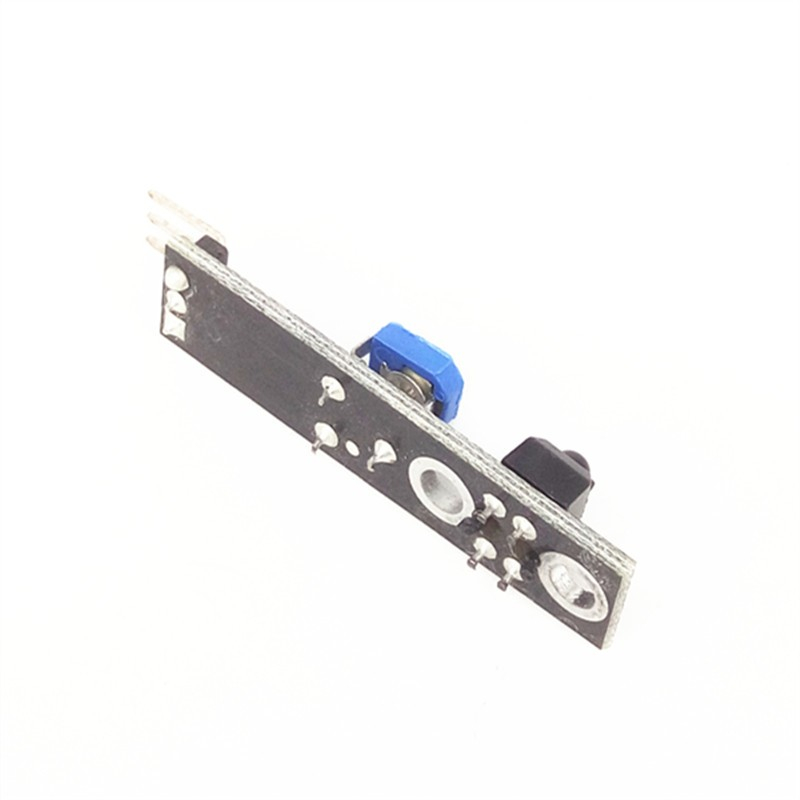

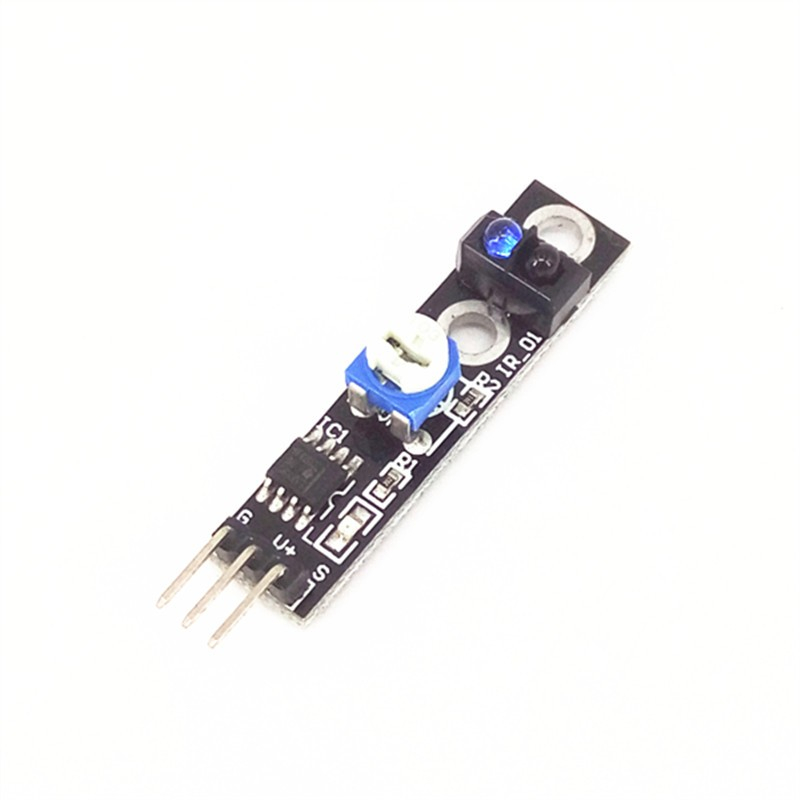

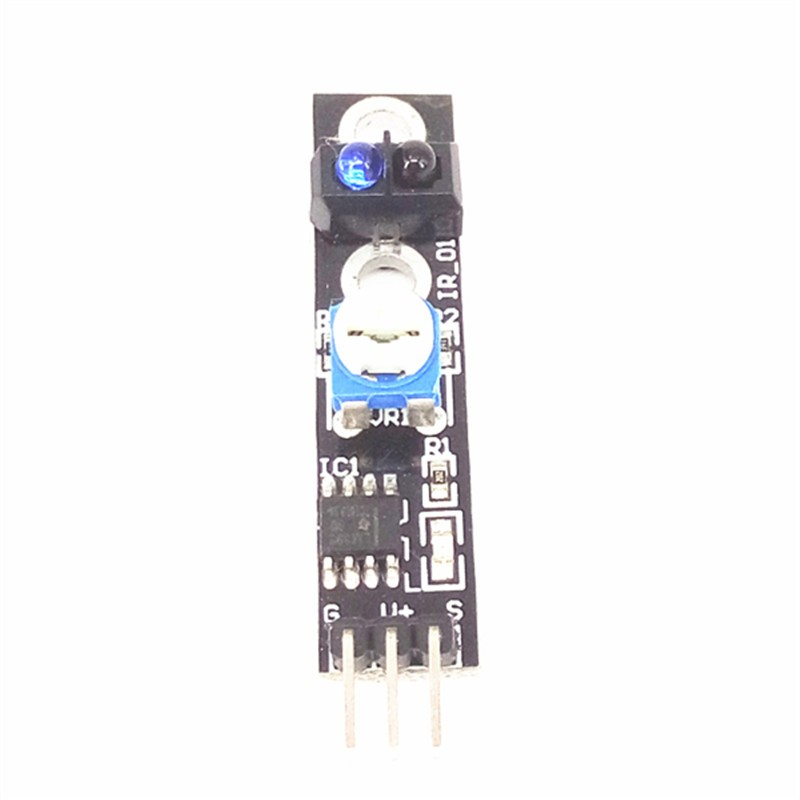

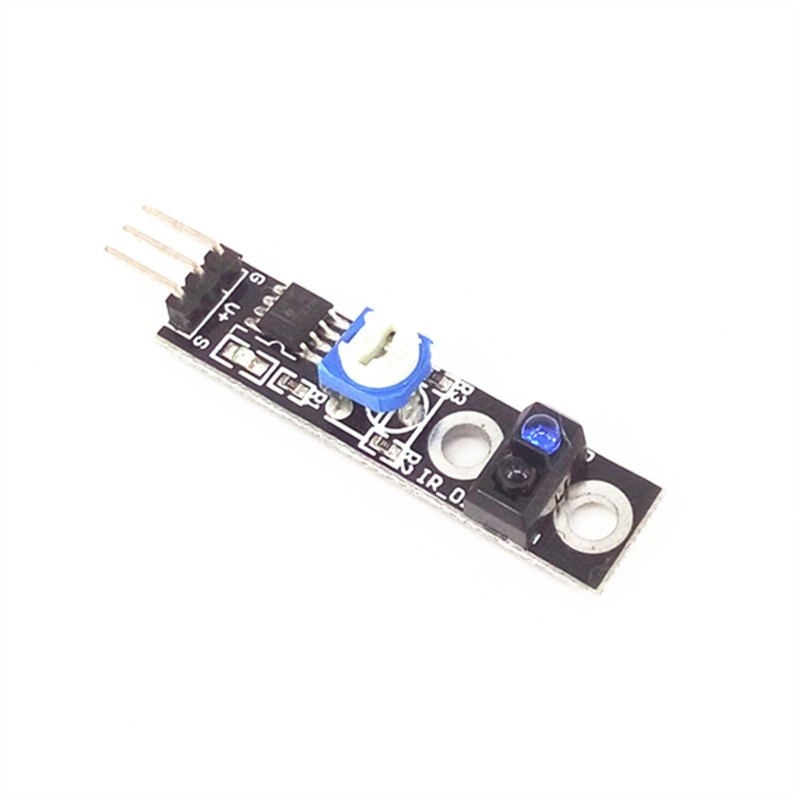

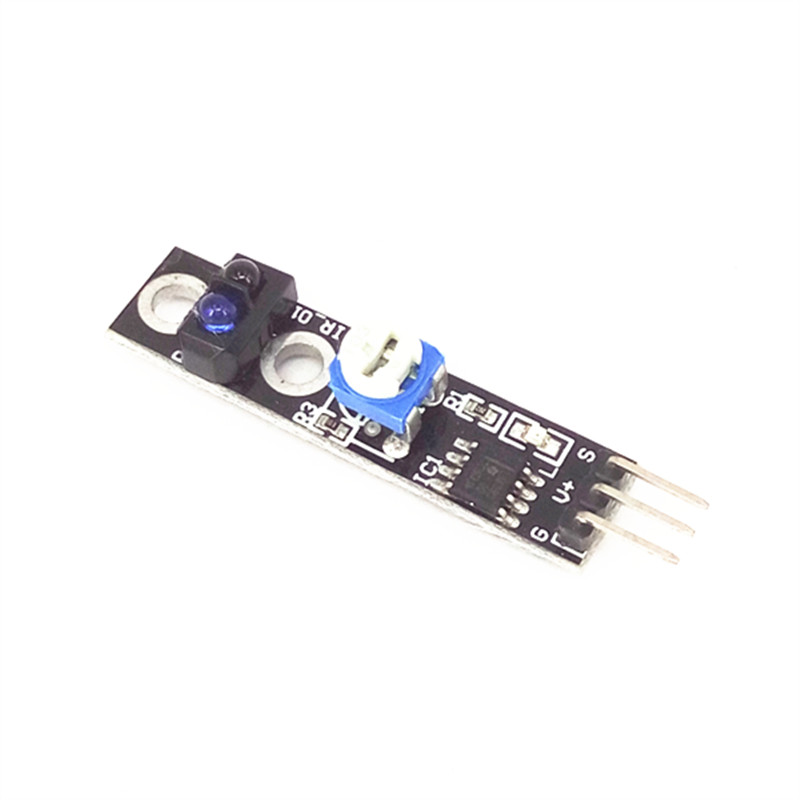

TCRT5000 IR Reflex Tracking Sensor Module

SKU: FA3010 Tag:
Weight 0.004 kg
Dimensions 4.2 × 1 cm
Model Number


Output Type


Package / Case

PCB Mount

Mounting Type

Through Hole

Sensing Distance

0.591" (15mm)


1. Detect the distance and test the white paper about 2 cm. The different distances of different colors are whiter.
2. Power supply voltage: 2.5 volts to 12 volts, no more than 12 volts (Note: The power supply voltage is low, the power supply
voltage is too high, the sensor life will be shorter, and the 5 volt power supply is the preferred power source).
3. Working current, 5 V 18-20ma. After many tests, the sensor hardware is set to the best performance of the current working 18 mA
and 20 mA, mainly in the anti-capacity interference. If you need small power consumption, we can modify it, at least they can do 5
mA. A message can be displayed.
4. The detected object, the final output signal level is low; no object is detected, and the final output signal is high.
5. TTL level sensor output, can be directly connected to the microcontroller IO port 3.3 volts or 5 volts.

Material: Metal, Plastic
Color: black
Size: 42*10.5*10mm

Suitable for infrared reflection sensor TCRT5000.
The waveform is good and the drive capability is greater than 15mA.
The multi-turn precision potentiometer is used to adjust the sensitivity adjustment.
Fix bolt holes for easy installation.
