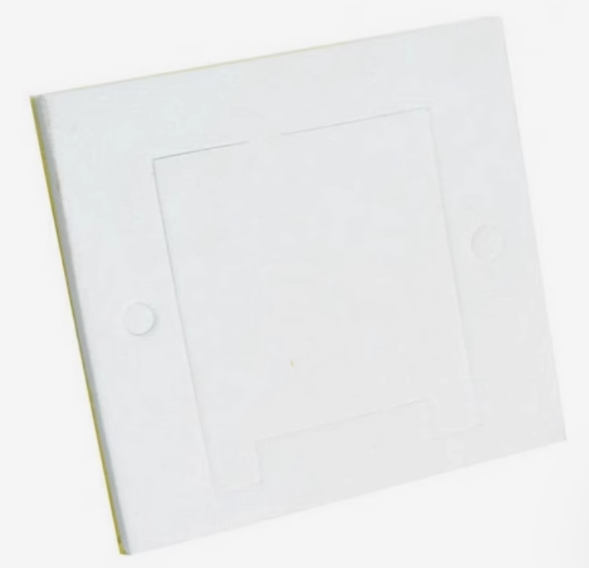

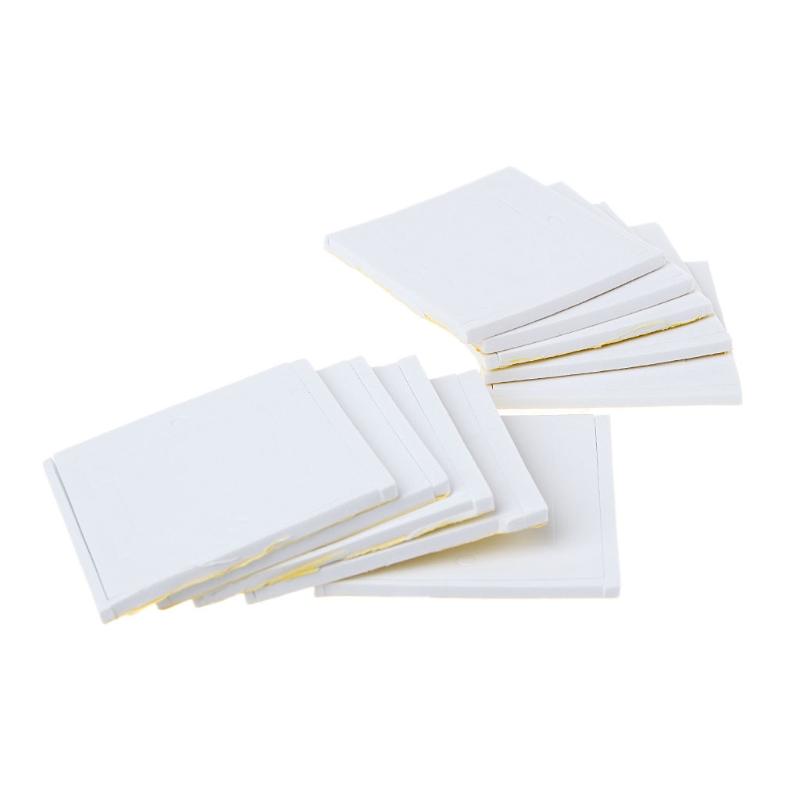

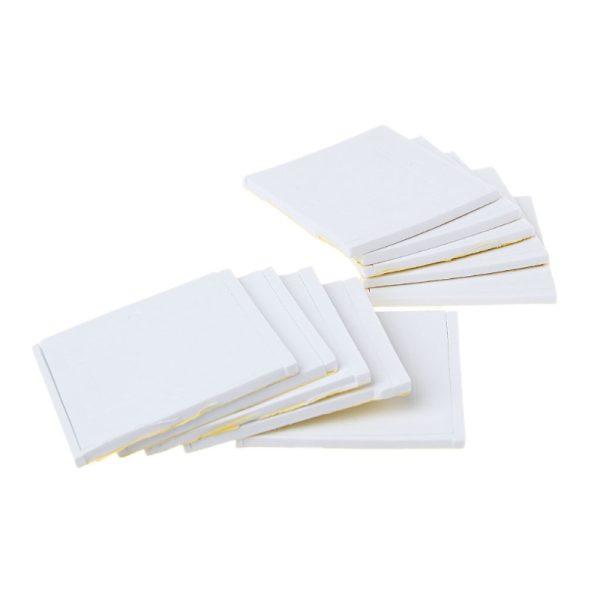

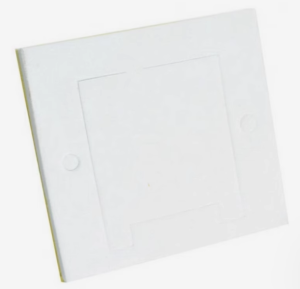

Thermal Barrier Washer for Thermoelectric Coolers (Compatible with TEC1-12706)

SKU: FA2049
Compatible Modules

TEC1-12706, 12705, 12710, 12715 (40x40mm)
Material Type

High-Density Closed-Cell EVA/Synthetic Foam
Internal Cutout Size

40mm x 40mm
External Dimensions

~45mm x 45mm (provides 2.5mm overlapping seal)
Thickness

~3.0mm to 4.0mm (Compressible)
Temperature Range

-50°C to +100°C
Thermal Conductivity

Low (Insulative)
Color

Black / Dark Grey
Product Description
The Thermal Barrier Washer for Thermoelectric Coolers is a critical component for maximizing the efficiency of Peltier cooling systems. Specifically designed for use with the industry-standard TEC1-12706 module, this specialized gasket serves two vital functions: thermal isolation and environmental protection.
In a typical thermoelectric setup, heat can “leak” back from the hot side to the cold side around the edges of the module, significantly reducing cooling performance. This barrier washer creates a thermal “break” that traps the cold air on the intended surface. Furthermore, it acts as a high-performance seal, preventing ambient moisture from condensing on the cold-side ceramic and infiltrating the delicate internal semiconductor couples. Engineered from high-density, closed-cell insulation material, it is the definitive choice for businesses and DIY users building wine coolers, portable refrigerators, or PC liquid cooling chillers.
Key Features
  • Thermal Bypass Prevention: Dramatically reduces parasitic heat transfer between the hot and cold plates, increasing the overall Delta-T (temperature difference).
  • Condensation Shield: Protects internal Peltier elements from moisture-induced corrosion and short-circuits in high-humidity environments.
  • Precision Fit: Pre-cut specifically for 40mm x 40mm modules (TEC1-12706, TEC1-12710, etc.), ensuring a seamless, gap-free seal.
  • Vibration Dampening: Provides a slight cushioning effect, reducing mechanical stress on the brittle ceramic plates of the TEC module during clamping.
  • Adhesive Backing: Features a high-tack, heat-resistant adhesive for easy alignment and secure positioning during assembly.
  • Industrial Durability: Resistant to high temperature cycles and common chemical outgassing, ensuring a long service life in industrial enclosures.
Usage & Applications
  • Portable Refrigeration: Ensuring maximum battery life in 12V portable coolers by reducing thermal loss.
  • PC Overclocking: Insulating Peltier-based CPU chillers to prevent water droplets from forming on sensitive electronics.
  • Medical Cooling Storage: Maintaining precise temperature control for insulin or vaccine transport containers.
  • Industrial Enclosures: Protecting sensitive control boards from heat in hot factory environments using active TEC cooling.
  • DIY Science Projects: Creating highly efficient cloud chambers or small-scale water chillers
Q: Do I still need thermal paste if I use this washer?
Yes. The washer goes around the edges of the TEC module to seal it. You must still apply high-quality thermal grease (TIM) to the top and bottom ceramic surfaces of the Peltier module to ensure heat transfer to your heatsinks.
Q: Can this washer be reused if I take the cooler apart?

Generally, no. Because the washer is made of compressible foam and features an adhesive backing, it is intended for a single, airtight installation. For the best thermal seal, a new washer should be used if the assembly is dismantled

Q: Will this fit larger Peltier modules?

This specific model is sized for 40mm x 40mm modules (the most common size). If you have a larger 50mm or 60mm module, this washer will be too small.

Q: Does the washer prevent the Peltier from cracking?
It helps! By providing a level, slightly compressible surface around the module, it helps distribute the clamping force of the heatsink more evenly, which reduces the risk of cracking the fragile ceramic plates.
Q: How thick should the washer be compared to the TEC module?

The washer is designed to be slightly thicker than the TEC1-12706 (which is ~3.8mm). When you tighten your heatsink, the foam compresses to match the height of the module exactly, creating a vacuum-tight seal
