XL4005 5A DC-DC Adjustable Step-Down Power Supply Module High Power High Efficiency Voltage Regulator Far More Than LM2596

SKU: FA2102-1-1
Input Voltage Range

DC 5V – 32V (XL4005 chip max)

Output Voltage Range

DC 0.8V – 30V (adjustable)

Output Current (Max)

5A (peak) / 4.5A (recommended continuous)

Output Power (Max)

75W (with adequate cooling)

Conversion Efficiency

Up to 96%

Switching Frequency

180KHz – 300KHz

Dropout Voltage

0.6V (minimum)

Output Ripple

< 50mV (typical)

Operating Temperature

-40°C to +85°C

Description

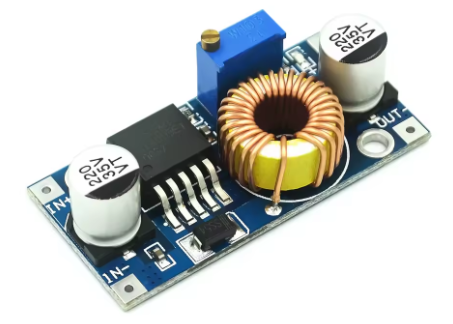

The XL4005 5A DC-DC Adjustable Step-Down Power Supply Module is a high-performance, high-current buck converter designed for applications requiring efficient voltage reduction with substantial power delivery. Whether you need to power 5V microcontrollers from a 12V battery, drive 12V LED strips from a 24V supply, or create a custom adjustable power supply, this module delivers reliable, efficient performance that far exceeds the capabilities of common LM2596-based modules.

At the heart of this module is the XL4005 chip from XLSEMI – a 300KHz fixed frequency PWM buck converter that integrates a high-current 5A power MOSFET . This advanced design achieves conversion efficiencies of up to 96%, significantly outperforming older LM2596 modules (which typically max out at 1.8A-2A continuous output) .

Key Technical Advantages over LM2596:

Feature XL4005 (This Module) LM2596 (Common Alternative)
Output Current 5A (4.5A recommended continuous) 1.8A-2A practical
Maximum Power 75W ~15W
Efficiency Up to 96% 80-85%
Switching Frequency 180KHz-300KHz 150KHz
Dropout Voltage 0.6V 1.5V

Comprehensive Protection Features :

  • Built-in thermal shutdown – Automatically shuts down when overheated

  • Current limiting – Prevents damage from overload conditions

  • Output short protection – Reduces switching frequency during shorts

  • EN pin with hysteresis – TTL-compatible shutdown capability

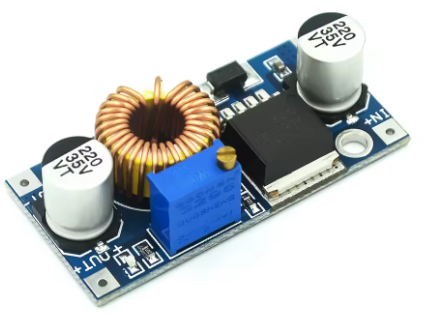

The module includes an adjustable multi-turn potentiometer (typically 25 turns) for fine-tuning output voltage from 1.25V to 36V . A power indicator LED confirms when the module is active, and the input/output pads are clearly labeled for straightforward wiring.

Wide Application Range :

  • Battery-powered devices: Convert 12V/24V battery banks to 5V for USB charging or Arduino projects

  • LED lighting: Drive 12V LED strips from 24V industrial supplies

  • DIY power supplies: Create custom adjustable bench power supplies

  • Industrial equipment: Step down 24V PLC rails to 5V or 12V for sensors

  • LCD monitors and digital photo frames

  • Telecom and networking equipment

Important Operating Note: This module is a step-down (buck) converter only. The input voltage must always be higher than the desired output voltage for proper regulation. It cannot step up voltage .

Whether you are an electronics hobbyist, an IoT developer, or an industrial engineer, the XL4005 5A Buck Converter Module provides a powerful, efficient, and reliable solution for all your voltage step-down needs.

Key Features

  • 5A High Output Current – Integrated 5A power MOSFET delivers up to 5A peak (4.5A recommended continuous with adequate cooling)

  • Wide Input Voltage Range – Accepts DC 5V to 32V input (XL4005 chip supports up to 32V), compatible with 12V, 24V, and other common power systems

  • Adjustable Output Voltage – Output can be set from 0.8V to 30V via onboard multi-turn potentiometer

  • High Conversion Efficiency – Up to 96% efficiency minimizes power loss and heat generation

  • 75W Maximum Power – Capable of delivering up to 75W output power (with adequate cooling)

  • 180KHz-300KHz Switching Frequency – Fixed-frequency PWM operation for predictable performance

  • Comprehensive Protection – Built-in thermal shutdown, over-current limiting, and output short protection

  • Low Dropout Voltage – Minimum dropout of 0.6V ensures efficient operation even with small input-output differentials

  • Low Output Ripple – Excellent filtering provides clean DC output for sensitive electronics

  • Operating Temperature -40°C to +85°C for reliable operation in various environments

Technical Parameters

Parameter Value
Input Voltage Range DC 5V – 32V (XL4005 chip max)
Output Voltage Range DC 0.8V – 30V (adjustable)
Output Current (Max) 5A (peak) / 4.5A (recommended continuous)
Output Power (Max) 75W (with adequate cooling)
Conversion Efficiency Up to 96%
Switching Frequency 180KHz – 300KHz
Dropout Voltage 0.6V (minimum)
Output Ripple < 50mV (typical)
Operating Temperature -40°C to +85°C

Usage Guide

How It Works

The XL4005 is a step-down (buck) switching regulator. It works by rapidly switching a power transistor on and off at high frequency (180KHz-300KHz), storing energy in an inductor during the ON time and releasing it to the output during the OFF time. The output voltage is regulated by adjusting the duty cycle based on feedback from a resistor divider network .

This switching design is far more efficient than linear regulators, especially when there is a large difference between input and output voltage or when delivering high current.

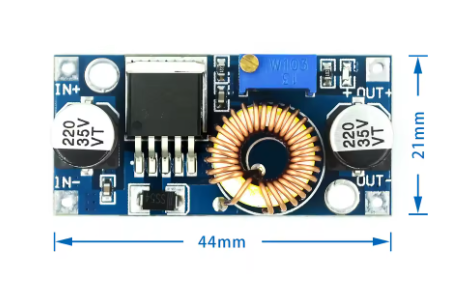

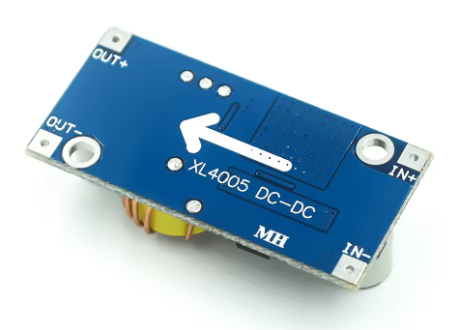

Pinout Description

The module features clearly labeled solder pads:

Label Function Description
V-IN Input Positive (+) Connect to your DC power source positive terminal (5V-32V)
V-IN Input Negative (-) Connect to your DC power source negative terminal (ground)
V-OUT Output Positive (+) Connect to your load’s positive terminal (0.8V-30V adjustable)
V-OUT Output Negative (-) Connect to your load’s negative terminal (ground)

Note: Input and output grounds are common (connected together on the board) .

Wiring Instructions

Step 1 – Connect Input Power

  • Connect the positive (+) wire of your DC power source to the V-IN pad marked “+”

  • Connect the negative (-) wire of your power source to the V-IN pad marked “-“

  • Observe polarity carefully – reverse polarity will damage the module

Step 2 – Connect Load

  • Connect the positive (+) wire of your load to the V-OUT pad marked “+”

  • Connect the negative (-) wire of your load to the V-OUT pad marked “-“

Step 3 – Power On and Adjust Output Voltage

  • Apply power to the input

  • Use a digital multimeter to measure voltage between V-OUT+ and V-OUT-

  • Turn the blue potentiometer with a small screwdriver:

    • Turn clockwise to INCREASE output voltage

    • Turn counter-clockwise to DECREASE output voltage

Critical Adjustment Note – Multi-Turn Potentiometer

This is the most important point for new users. The module uses a multi-turn potentiometer (typically 25 turns from end to end) . The module may ship with the output voltage pre-set to around 20V .

If the output voltage is not changing when you turn the screw:

  • You have likely reached the end of the adjustment range and need to turn in the opposite direction

  • Try turning the screw counter-clockwise many turns (10-15 full rotations) until the voltage starts to decrease

  • If voltage remains at input voltage, the potentiometer is at its maximum – keep turning counter-clockwise until it begins to drop

Current and Thermal Management

While the XL4005 chip is rated for 5A, practical continuous output current depends on cooling:

Condition Recommended Max Continuous Current
Natural cooling (no heatsink) Up to 2.5A
With heatsink, adequate airflow 3A – 4A
With heatsink and good cooling 4A – 4.5A
Peak (short duration) 5A

Important Current Relationship: As a step-down converter, the input current will be lower than the output current:

Input Current = Output Current × (Output Voltage ÷ Input Voltage) ÷ Efficiency

Example: 5V @ 4A output (20W) from a 24V input draws only approximately 0.9A-1A input current.

Heat Management Tips :

  • For loads above 2.5A continuous, a heatsink is recommended

  • For loads above 50W (e.g., 12V @ 4.2A), a heatsink is required

  • Ensure adequate airflow around the module

  • The module includes thermal shutdown protection, but good thermal design is still essential

Important Operating Restrictions

Voltage Limitation (Critical):
This module is a step-down (buck) converter only. The input voltage must always be higher than the output voltage for proper regulation . If the input voltage drops below the output voltage, the module cannot boost, and the output will approximately follow the input.

Minimum Headroom:
The module requires approximately 1.5V of headroom – input voltage should be at least 1.5V higher than the desired output voltage for best regulation .

Reverse Polarity Warning:
This module does NOT have reverse polarity protection . Double-check your V-IN+ and V-IN- connections before applying power. Connecting backwards will instantly destroy the module. If reverse polarity protection is needed, add a high-current diode in series with the input .

Short Circuit Behavior:
When the output is shorted, the module limits current to approximately 8A . However, avoid prolonged short circuits as they may damage the module.

Example Applications

Use Case Input Source Output Notes
Raspberry Pi / Arduino Power 12V battery 5V @ 3A-4A Heatsink recommended for 3A+
24V to 12V Conversion 24V industrial supply 12V @ 4A Heatsink required
Car Phone Charger 12V-14.5V vehicle 5V @ 2A Stable output despite fluctuations
DIY Bench Power Supply 24V laptop adapter 1.25V-20V adjustable Custom variable power supply
LED Strip Driver 24V supply 12V @ 4A Efficient LED power
Solar Battery Charging 24V solar panel 12V @ 3A Regulated battery charging

Installation Tips

  • Polarity Check: Always double-check input polarity before applying power

  • Initial Setup: Adjust output voltage with no load connected first

  • Measure Before Connecting: Always measure the output voltage with a multimeter before connecting your load

  • Keep Wires Short: Long wires add resistance and voltage drop

  • Capacitor Addition: For noise-sensitive applications, add additional 220µF-470µF capacitor at output

  • Heatsink: For loads above 2.5A continuous, attach a heatsink to the XL4005 chip

  • Start with Low Load: When first testing, use a low-current load to verify voltage setting before connecting sensitive equipment

Q: What is the difference between XL4005 and LM2596?

The XL4005 is a superior alternative to the older LM2596:

Feature XL4005 LM2596
Output Current 5A (4.5A continuous) 1.8A-2A practical
Efficiency Up to 96% 80-85%
Maximum Power 75W ~15W
Dropout Voltage 0.6V 1.5V
Switching Frequency 180-300KHz 150KHz

For any application requiring more than 2A output current, the XL4005 is the better choice.

Q: Why is my output voltage not changing when I turn the potentiometer?

The module uses a multi-turn potentiometer (25 full turns from end to end) . The module may ship with the output preset to around 20V . If you reach the end of its range, turning further will have no effect. Try turning the screw counter-clockwise many turns until the voltage starts to decrease. If voltage remains at input voltage, the potentiometer is at its maximum – keep turning counter-clockwise.

Q: What is the maximum continuous current I can draw?

With proper cooling:

  • Up to 2.5A: Safe without heatsink

  • 3A – 4A: Requires heatsink and adequate airflow

  • 4A – 4.5A: Requires good heatsink and cooling

  • 5A: Peak/short duration only

The 5A rating is the chip’s switch current limit, not the continuous output rating . Real-world testing has shown that some modules may fail when pushed to their absolute limits, so stay within recommended ranges .

Q: Why is my module getting very hot?

Heat is normal in any high-power DC-DC converter. The XL4005 runs hot at high currents due to:

  • Internal switch losses – 5A current through the internal MOSFET

  • Diode conduction losses – The Schottky diode drops voltage at high current

Solutions:

  • For loads above 2.5A, add a heatsink

  • Ensure good airflow around the module

  • If too hot to touch, reduce the load or improve cooling

Q: Can I use this module for both home and business applications?

Home users: Raspberry Pi power supplies, 12V LED strip drivers, DIY adjustable bench power supplies, battery charging, USB device power from car batteries.

Business users: Industrial equipment power supplies, solar system regulation, LED lighting systems, prototype development, 24V to 5V conversion for sensors, telecom equipment

Q: Does this module have short circuit or reverse polarity protection?
  • Short circuit: Yes, the module has built-in current limiting (approx 8A limit)

  • Reverse polarity: NO – this module does NOT have reverse polarity protection . Always double-check connections before applying power. Adding a high-current diode in series with the input can provide reverse protection.

Q: What is the efficiency of this module?

The XL4005 achieves up to 96% efficiency under optimal conditions (moderate load, small input-output voltage difference) . Efficiency drops with very large voltage differences or very light/heavy loads. For a 24V to 5V conversion at 4A, expect 85-90% efficiency. Lower input voltages generally yield higher efficiency .

Q: What is the dropout voltage?

The dropout voltage is the minimum difference between input and output for proper regulation. The XL4005 has a dropout voltage of 0.6V . For 5V output, input can be as low as 5.6V and still regulate properly, though 1.5V headroom is recommended for best performance .

Q: What is included in the package?
  • 1 x XL4005 5A Adjustable Buck Converter Module

  • (Heatsink may not be included – check product listing)
