Product Overview
The 0.96-inch White OLED Display Module is a compact, high-contrast monochrome graphic display designed for projects requiring crisp visual output without consuming excessive power or I/O pins. Powered by the SH1106 driver IC and featuring a clear 128×64 pixel resolution, this display delivers bright white text, detailed graphics, and custom icons on a true black background .
OLED (Organic Light Emitting Diode) technology requires no backlight, as each pixel emits its own light. This self-emissive design provides true blacks (inactive pixels are completely off), exceptional contrast, and wide viewing angles—ensuring the display remains readable from virtually any angle .

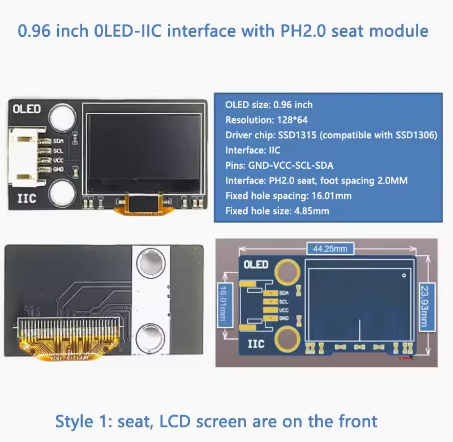

The module features a PH2.0 connector on the front, making it easy to connect using standard 4-pin JST cables. It uses the I2C (IIC) interface, requiring only two data lines (SDA and SCL) to connect to your microcontroller. This preserves valuable I/O pins for other sensors and peripherals.
With support for both 3.3V and 5V logic, it is directly compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and most other development boards – no level shifters required .
Key Features
-
PH2.0 Connector: Convenient front-mounted JST connector for easy plug-and-play installation using standard cables
-
0.96-Inch Active Area: 128×64 pixel resolution with 21.74 × 10.86mm active area – compact yet highly readable
-
White Monochrome OLED: Clean white pixels on true black background provide excellent contrast and professional appearance
-
SH1106 Driver IC: Industry-standard controller with built-in 128×64-bit SRAM display buffer and support for I2C interface
-
I2C Interface: 4-pin connection (VCC, GND, SCL, SDA) with default address 0x3C – requires only 2 data lines
-
Wide Voltage Compatibility: Operates on DC 3.3V – 5V, compatible with both 5V (Arduino) and 3.3V (ESP32/ESP8266) systems
-
Ultra-Low Power Consumption: 50% display pattern draws only 10mA typical ; unlit pixels draw no power – ideal for battery-powered projects
-
Wide Operating Temperature: Rated for -40°C to +80°C, suitable for industrial and outdoor applications
Technical Specifications
Pinout & Connection Guide
The module features a PH2.0 connector on the front with the following 4-pin configuration:
I2C Pin Mapping for Common Development Boards
Wiring Diagram (Arduino Uno)
OLED Module → Arduino Uno
─────────────────────────────────────
VCC → 5V
GND → GND
SCL → A5 (SCL)
SDA → A4 (SDA)
PH2.0 Connector Information
The PH2.0 connector is a 2.0mm pitch JST-compatible connector commonly used for battery connections and display modules. The front-mounted connector allows easy connection using standard 4-pin cables.
SH1106 Driver Note
This 0.96″ display uses the SH1106 driver IC. The SH1106 has internal RAM of 132×64 pixels, while the visible area is 128×64 pixels . This is different from the SSD1306 driver found on some 0.96″ displays. However, for library compatibility:
-
U8g2 library works with both SH1106 and SSD1306 – recommended
-
Adafruit_SSD1306 library may still work, but may have minor display artifacts (incorrect column start address)
-
When using libraries, ensure you select SH1106 support if available
Key difference: The SH1106 requires a column start address of 0x02 (unlike SSD1306’s 0x00) . Most modern libraries handle this automatically.
Usage Guide
Software Setup (Arduino IDE)
Step 1: Install Required Libraries
The U8g2 library by Oliver Kraus is the most reliable choice for SH1106 displays, offering excellent support and many font options.
-
Open Arduino IDE → Sketch → Include Library → Manage Libraries
-
Search for “U8g2” by Oliver Kraus
-
Click Install
Alternative Libraries:
Step 2: Basic Test Sketch (U8g2 Library)
#include <Arduino.h>
#include <U8g2lib.h>
#include <Wire.h>
U8G2_SH1106_128X64_NONAME_F_HW_I2C u8g2(U8G2_R0, U8X8_PIN_NONE);
void setup() {
u8g2.begin();
u8g2.enableUTF8Print();
u8g2.setFont(u8g2_font_ncenB08_tr);
}
void loop() {
u8g2.firstPage();
do {
u8g2.drawStr(0, 15, "0.96 OLED");
u8g2.drawStr(0, 35, "128x64");
u8g2.drawStr(0, 55, "SH1106 - I2C");
} while ( u8g2.nextPage() );
delay(1000);
}
Step 3: Alternative using Adafruit Library
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
if(!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Serial.println(F("SSD1306 allocation failed"));
for(;;);
}
display.clearDisplay();
display.setTextSize(1);
display.setTextColor(SSD1306_WHITE);
display.setCursor(0, 0);
display.println("0.96 OLED");
display.println("128x64 Ready!");
display.display();
}
void loop() {}
I2C Address Verification
Most modules use address 0x3C. Some may use 0x3D depending on the SA0 pin configuration . Run this I2C scanner to verify:
#include <Wire.h>
void setup() {
Wire.begin();
Serial.begin(9600);
Serial.println("I2C Scanner");
}
void loop() {
byte error, address;
int nDevices = 0;
for(address = 1; address < 127; address++) {
Wire.beginTransmission(address);
error = Wire.endTransmission();
if(error == 0) {
Serial.print("I2C device found at address 0x");
if(address < 16) Serial.print("0");
Serial.println(address, HEX);
nDevices++;
}
}
if(nDevices == 0) Serial.println("No I2C devices found");
delay(5000);
}
Raspberry Pi Setup (Python)
-
Enable I2C: sudo raspi-config → Interface Options → I2C → Yes
-
Install required libraries:
sudo apt-get install python3-pip
pip3 install luma.oled
-
Python example code:
from luma.core.interface.serial import i2c
from luma.oled.device import sh1106
from luma.core.render import canvas
serial = i2c(port=1, address=0x3C)
device = sh1106(serial, width=128, height=64)
with canvas(device) as draw:
draw.rectangle(device.bounding_box, outline="white", fill="black")
draw.text((10, 20), "0.96 OLED", fill="white")
draw.text((10, 40), "128x64 Ready!", fill="white")
Understanding the Display Buffer Workflow
The display library uses a buffer-based drawing system:
-
Drawing functions (e.g., drawPixel, drawStr, fillRect) write to an in-memory buffer, not directly to the screen
-
The screen does NOT update immediately
-
You must call u8g2.nextPage() (U8g2) or display.display() (Adafruit) to transfer buffer contents to the OLED panel
This double-buffering technique prevents screen flicker and allows you to build complex frames efficiently.
Power Management for Battery-Powered Projects
OLED displays are excellent for low-power applications because only lit pixels consume power.
Power-Saving Tips:
-
Update the display only when values change rather than continuously refreshing
-
Use U8g2 sleep mode functions to turn OFF the display when not actively needed
-
Avoid displaying large white areas continuously to maximize battery life
Q: What is the difference between SH1106 and SSD1306 drivers?
The SH1106 driver (used on this 0.96″ module) has internal RAM of 132×64 pixels, while the visible area is 128×64 pixels . The SH1106 requires a column start address of 0x02, while SSD1306 uses 0x00. Most modern libraries (U8g2, Adafruit) handle this automatically, but code written exclusively for SSD1306 may need adjustment .
Q: What is the default I2C address of this display?
The default I2C address is 0x3C. Some modules may support 0x3D via resistor configuration. If you have trouble detecting the device, run the I2C scanner sketch to confirm the address .
Q: Can I use this display with a 5V Arduino Uno directly?
Yes. The module includes an onboard voltage regulator that accepts both 3.3V and 5V power. Connect VCC to 5V, GND to GND, SCL to A5, and SDA to A4 – no level shifters required .
Q: What is the PH2.0 connector and why is it convenient?
The PH2.0 connector is a 2.0mm pitch JST-compatible connector commonly used for battery connections and display modules. The front-mounted connector allows you to use standard 4-pin JST cables for plug-and-play installation without soldering.
Q: Why does my display stay blank after power-up?
Check these common issues:
-
Wrong I2C address – Run the I2C scanner sketch to verify (should be 0x3C)
-
Wiring – Verify VCC→5V (or 3.3V), GND→GND, SCL→SCL, SDA→SDA
-
Missing display buffer transfer – Ensure you call u8g2.nextPage() or display.display()
-
Power supply – Ensure your power source can deliver ~30mA
-
Library selection – Ensure you’re using a library that supports SH1106 (U8g2 recommended)
Q: How do I use this display with an ESP32 or ESP8266?
Yes. Both ESP32 and ESP8266 use 3.3V logic, which is directly compatible. Connect VCC to 3.3V, GND to GND, and SCL/SDA to the appropriate I2C pins. The U8g2 library works on these platforms with the same code.
Q: Can I connect the display to both 3.3V and 5V systems?
Yes. The module is rated for 3.3V – 5V DC . You can use it with 3.3V systems (ESP32, Raspberry Pi) or 5V systems (Arduino Uno/Mega). The built-in voltage regulation handles both .
Q: What is the lifespan of the OLED display?
OLEDs have a rated lifespan of approximately 50,000 hours of continuous operation (about 5.7 years) . Avoid displaying static images for extremely long periods to prevent uneven pixel wear (“burn-in”). For typical intermittent hobbyist use, this is not a concern.
Q: Can I display Chinese characters or custom fonts?
Yes. The U8g2 library supports UTF-8 encoding and includes various fonts. Enable with u8g2.enableUTF8Print() and use fonts like u8g2_font_wqy12_t. For custom fonts, tools like LCD Image Converter can convert text into bitmap data arrays.
Q: Does this display have a protective film?
Yes. The OLED glass surface typically has a removable transparent protective film for scratch resistance until use. Remember to remove this film before final assembly for optimal clarity .
Q: What is the maximum SPI clock frequency supported?
For I2C mode, the maximum clock frequency is typically 400kHz (Fast Mode). Some SH1106 implementations may support up to 1MHz. Always start with lower frequencies (100kHz) and increase as needed.
Q: Can I use this display for animations?
Yes. The display supports fast refresh rates suitable for simple animations and dynamic content, especially when using SPI mode (if available). I2C refresh rates are adequate for menu systems, sensor dashboards, and scrolling text. For high-frame-rate animations, consider using the SPI interface.
