PIC ICD2 PICKIT2 PICKIT3 Programming Adapter

SKU: FA2022 Tag:
Weight 0.033 kg

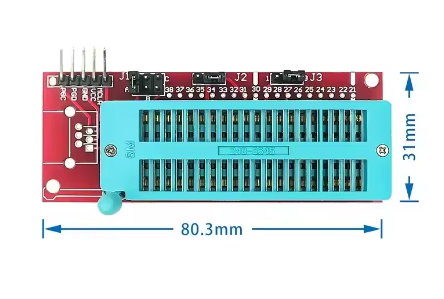

Dimensions 8.1 × 3 × 1.5 cm

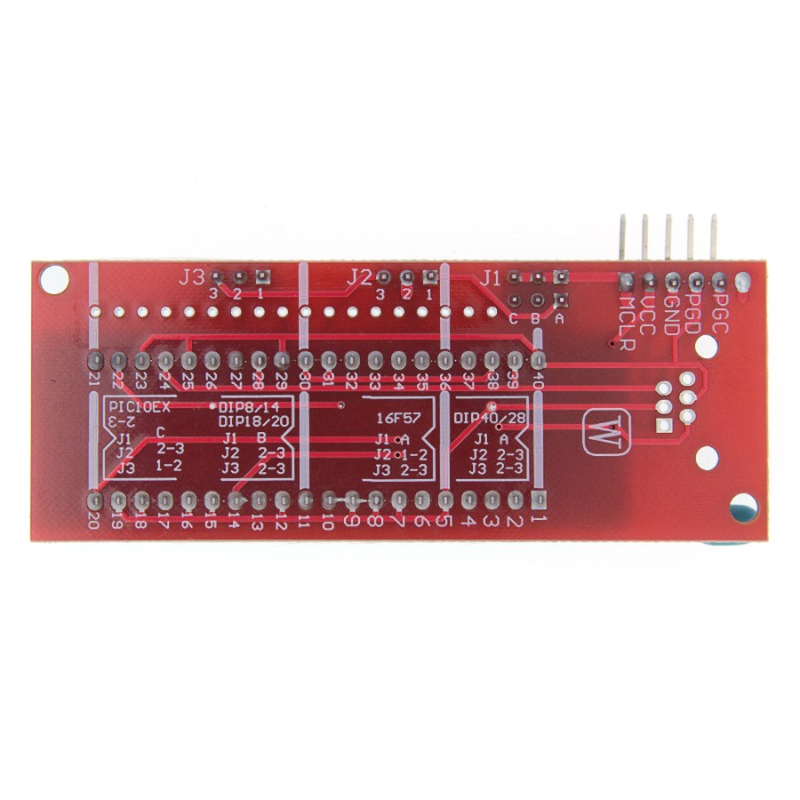

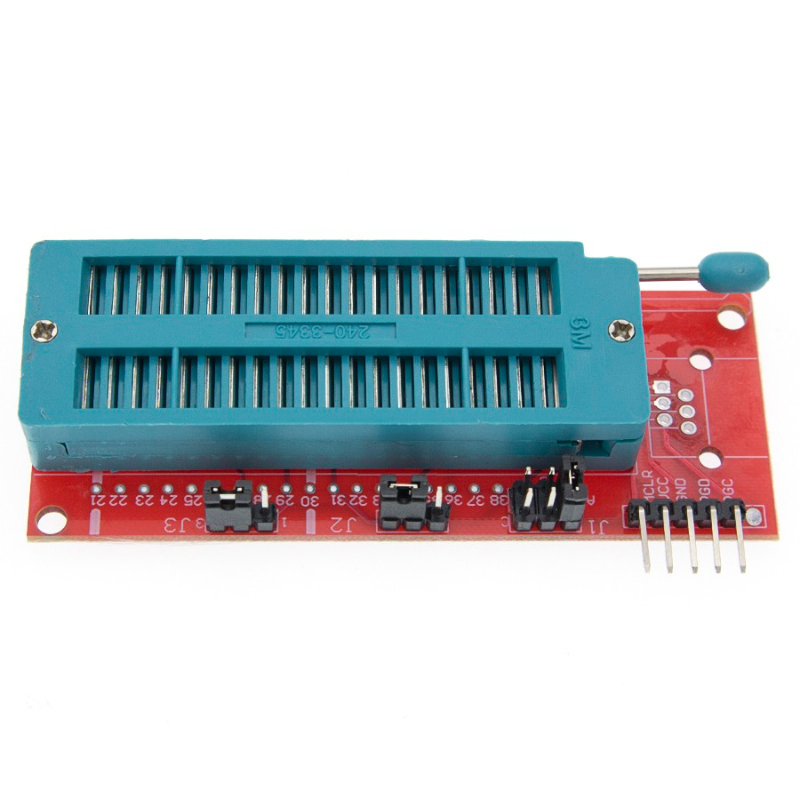

Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28 / 40P (A). This flag line short-circuits cap on the A position. The 8.14,18,20-pin microcontroller aligned on the left 8P / 14P / 18P / 20P flag line (B), shorting cap on the B position.

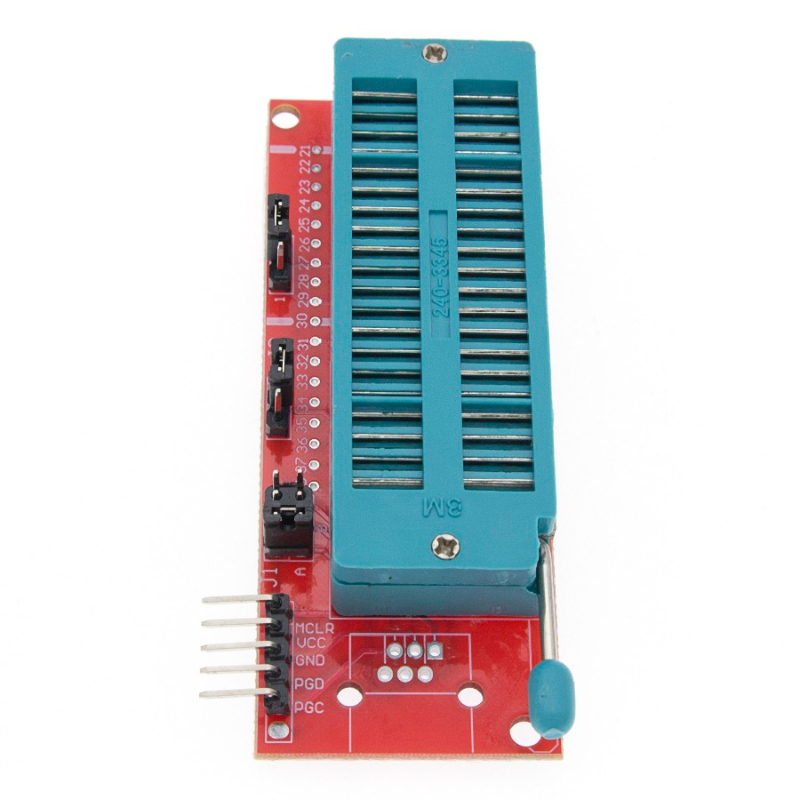

The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation.(Note: a separate program of the seat)

The seat supports the following programming microcontroller:
  • PIC16/18XX 40PIN Series devices (except 16F59)
  • PIC16/18XX 28PIN Series devices (except 16F57)
  • PIC16/18XX 18PIN Series devices
  • The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

The PIC ICD2 PICKit2 PICKIT3 Universal Programming Adapter Programmer Board is designed to work in conjunction with the popular PICkit 2 or PICkit3 programmer.
